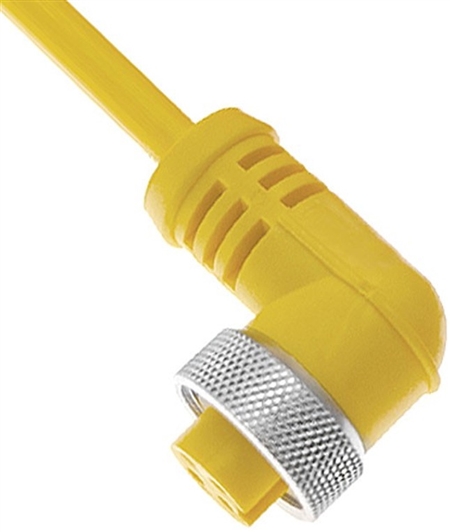

The Mencom MIN-4FP-30-R MIN Size I female right angle cordset features a 4 pin insert, 16 gauge wire and 30 feet of cable. The body is yellow PVC with gold plated copper alloy contacts. The cable is oil resistant and rated at 600V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MIN Size I (7/8") cordsets provide plug and play solutions for various applications.
Pin #1 - Black
Pin #2 - White
Pin #3 - Red
Pin #4 - Green/Yellow
Specifications
- Body- Yellow PVC
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Clear Anodized Aluminum
- Cable- 16/4 STOOW Yellow PVC Jacket
- Rated Voltage- 600 V
- Rated Current- 10 Amps
- Wire Gauge- 16
- Pin Count- 4
- Cable Length- 30 Feet (9.14 m)
- Cable O.D.- 0.42
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- 7/8-16UN2
- Ground Wire- Yes
- Nut- No
- Approvals- UL & CUL Listed
Can be compatible with certain Turck Minifast and Brad Harrison/Molex Mini-Change connectors
