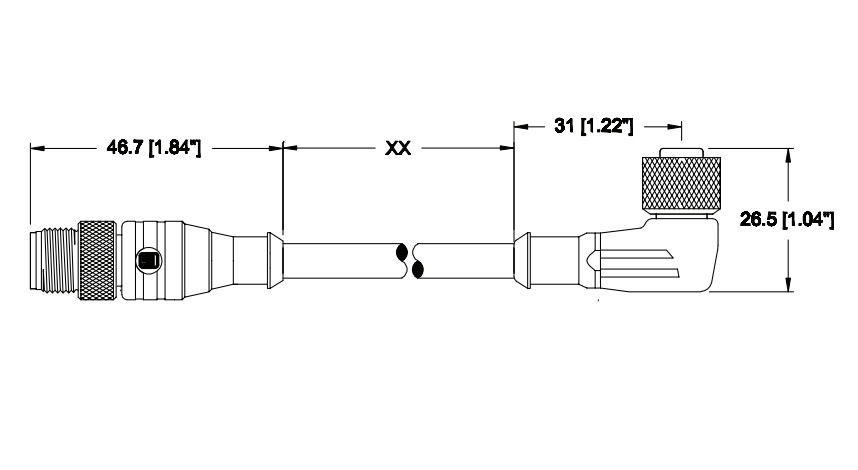

The Lumberg Automation 600006400 RST 5-RKWT 5-647/2M M12 male straight/female right angle extension cordset features 5 pin inserts with a rated voltage of 30V, a rated current of 4A and 2 meters of cable. Protection class IP 68 / NEMA 6P. Gray PVC cable, with gold plated brass contacts. Features self-locking thread and can quickly disconnect. Used mainly in applications involving sensors and actuators.
Specifications
- Cable Type- Gray PVC
- Type of Contact- Female Right Angle, Male Straight
- Number of Pins- 5
- Rated Voltage- 30 V
- Rated Current- 4 Amps
- Conductor Size- 22 AWG
- Cable OD- .212" (5.38 mm)
- Protection Class- IP 68 / NEMA 6P
- Contact Material- Gold Plated Brass
- Housing Material- Translucent Gray PUR
- Insert Material- Orange PUR
- Coupling Nut Material- Nickel Plated Brass
- O-Ring- FKM
- Operating Temperature- -40 C to +90 C (-40 F to 194 F)
- Cable Length- 2 meter (6.56 ft)
- Approvals- C UR US
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Additional Product Information
|
|
|
|
|
|
