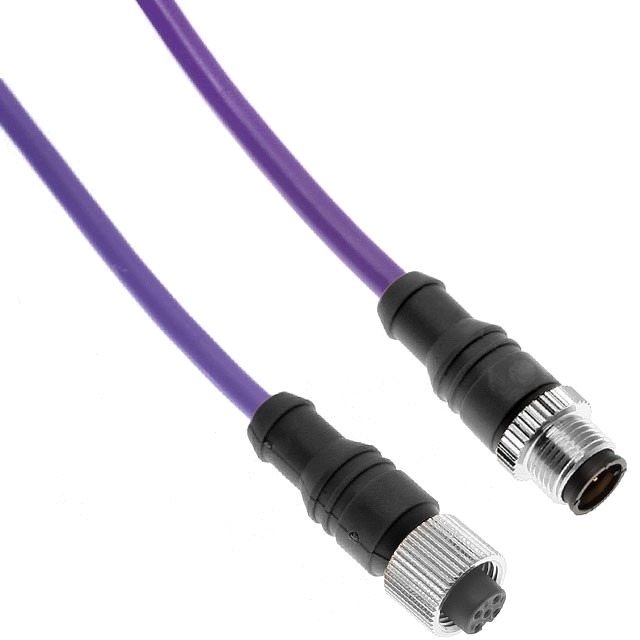

The Mencom PBEC-3MFP-5M Profibus DP male/female straight cordset features a 3 pin insert, 22 gauge wire and 5 meters of cable. The connector body is flame resistant black PVC with violet PVC jacketed cable, gold plated copper alloy contacts & drain wire. The cable is rated at 300V and 4A. Rated IP 67 for dust and water protection. Operating temperature -40 C to 80 C (-40 F to 176 F). The Mencom Profibus DP molded extension cables have plug and play capability for an easier set-up. They are mostly used for sensors and actuators in automation equipment, working through a main control unit.
Pin #1 - Not Connected
Pin #2 - Green
Pin #3 - Not Connected
Pin #4 - Red
Pin #5 - Shield
Specifications
- Body- Black PVC
- Insert- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- Violet PVC jacket, Profibus DP Cable, 1 PR 22 AWG w/ Drain Wire
- Shielding- Yes
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 3
- Cable Length- 5 meter (16.4 ft)

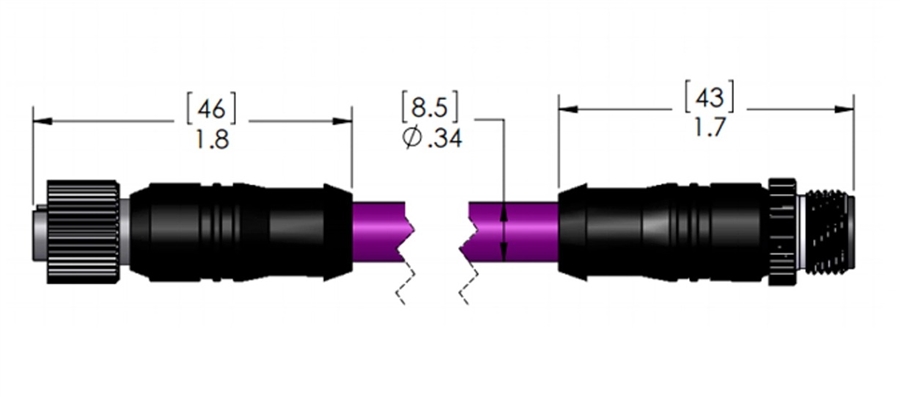

- Cable O.D.- 0.335
- Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
- Orientation Head 1- Male Straight
- Orientation Head 2- Female Straight
- Coupling Thread 1- Male
- Coupling Thread 2- Female
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
