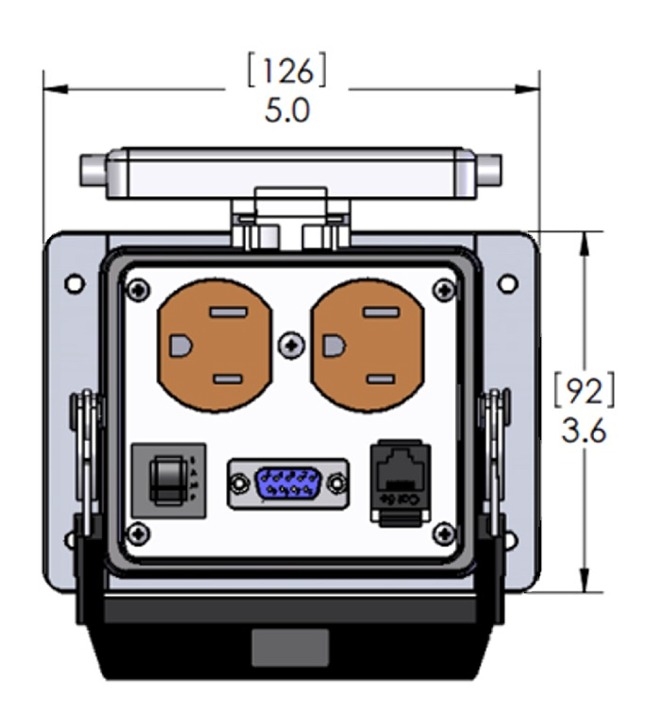

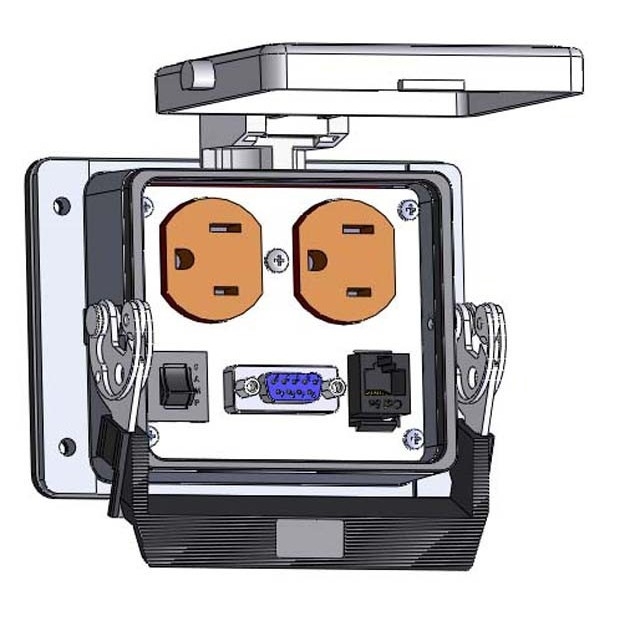

Mencom Panel Interface Connectors (PIC) mount to the outside of the control panel and allow access to the PLC or PAC without having to open the control cabinet. The Mencom DP-DB9-RJ45-5R-32 PIC features a 120V Duplex Receptacle, a 9 pin Female Ext/Male Interior D-sub, RJ45 port, and a 5 amp resettable fuse in a size 32 housing. Housing is rated NEMA/UL type 12, 4 & 4x and includes a lid, seal and latch.
Specifications
- Body- Epoxy coated die cast aluminum
- Gasket- Thermoplastic elastomer
- Handle- Polyamide
- Levers- Stainless Steel
- Volts- 125 V
- Amps- 3 Amps
- SCCR- 10kA
- Housing- Size 32 Bulkhead Housing
- Power Ports- 120V Duplex Receptacle
- D-Sub- 9 Pin D-Sub Female Ext. / Male Int.
- RJ / Ethernet- RJ45
- Fuse- 5 Amp Resettable
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
|
|
|
 |
|
 |
|
