Sealcon CD11BA-GY PG 11 Dome .16" - .31" (4 - 8 mm) O.D. Reduced Cord Grip

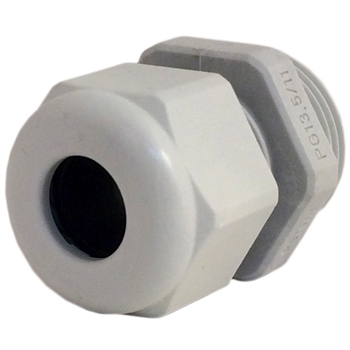

Sealcon CD11BA-GY Nylon Plastic PG 11 Cord Grip
Sealcon CD11BA-GY PG 11 Dome .16" - .31" (4 - 8 mm) O.D. Reduced Cord Grip



Alternative Views:


Our Price: $1.54
MFG P/N: CD11BA-GY
MFG: Sealcon
Weight (lbs): 0.02

Product Code: CD11BA-GY
Qty:


Description


Sealcon CD11BA-GY reduced body black nylon cord grip is liquid tight to 150 psi. PG 11 Thread, Accommodates .16" - .31" (4 - 8 mm) O.D cable. Sold Individually. (Locking nut & O-Ring sold separately) Also known as Hummel #1.591.1100.14

Thread Size/Type PG 11
  • Nylon 6/6 Material with Buna-N Seal
  • Submersible to 300 ft. / NEMA 4x & 6 (IP68 / IP69K)
  • 150 psig (10 bar) Pressure Rating
  • Flame Protected to UL 94
  • Halogen and Phosphorous Free
  • Vibration Resistant Dome
  • Resists salt water, acids, alkalis', gasoline & oils.
  • Durable Rugged Construction
  • RoHS & Deca BDE, CSA approval
Through Hole Dia. .73" (18.5 mm)
Body Length .87" (22 mm)
Thread Length .31" (8 mm)
Wrench Flat Dome/Body .87" (22 mm)

Sealcon PG 11 Nylon Plastic cord grips, cable glands, and strain relief fittings are used in all industries to assist customers in connecting cable or wire to various applications. This cable gland provides a NEMA 4x & 6 (IP 68 & 69K), 150 PSIG (10 bar) Liquid Tight Rating. Reduced body strain relief fittings are made for applications in which the cable diameter decreases, but the thread size stays the same. Switching out the standard or reduced inserts increases flexibility. Sealcon patented overlapping clamping splines, recessed custom grommets help protect your cable from damage and the elements. The CD11BA-GY cord grip creates a large amount of Pull-out resistance by applying an even force on all points of the cable.

Approvals
  • RoHS Compliance
  • Deca Bde Deca-Bromo-Diphenyl-Ether Compliance
  • Registration, Evaluation, Authorization and Restriction of Chemicals
  • Waste Electrical and Electronic Equipment Directive
  • UL / CUL Listed
  • UL Registered
  • EAC
  • CE
  • German Lloyd

Sealcon CD11BA-GY Reduced Body Strain Relief Fitting

Additional Product Information

Sealcon PG Dome Cable Glands Comparison Chart
