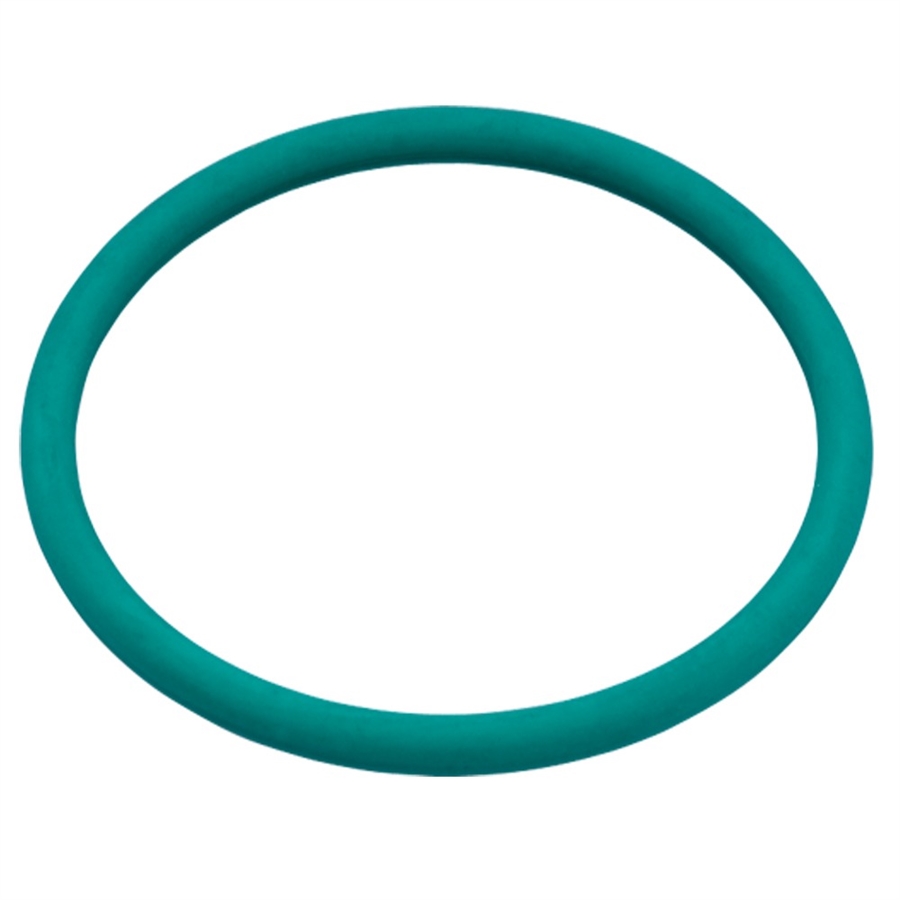

Sealcon OM-50-VT M50 Viton O-Ring

OM-50-VT
Sealcon OM-50-VT M50 Viton O-Ring



Alternative Views:


Price: $8.53
MFG P/N: OM-50-VT
MFG: Sealcon
Weight (lbs): 0.006

Quantity in Stock :26


Availability:
In Stock
Product Code: OM-50-VT
Qty:


Description


Sealcon OM-50-BN high quality Viton O-Rings are liquid tight to 150 psi. M50 x 1.5 Metric Thread. Sold Individually. Also known as Hummel # 1.321.5000.58.

Specifications

  • Thread Size: M50 x 1.5
  • Inner Diameter: 1.69" (43 mm)
  • Height: .08" (2 mm)

Features

  • Viton Material
  • Operating Temperature - -40 F to 392 F (-40 C to 200 C)
  • Submersible to 300 Ft - NEMA 4x & 6 (IP68 / IP 69 K)
  • 150 PSIG (10 Bar) Rating
  • RoHS & Deca BDE approval

The Straight Strain Relief fittings feature a molded O-Ring groove. The Snap Elbows and some of the Conduit Fittings do not have recess for an O-Ring. In that case, the Seal Ring would be the best choice, unless the hole can be beveled to accommodate an O-Ring. If NEMA 4x or 6 (European IP 68 - submersible) is required, O-Rings or Seal Rings should be used when mounting Strain Relief Fittings to a control panel, secured with a locking nut. Viton is a federally registered trademark of DuPont Dow Elastomer.

Sealcon M50 Viton O-Ring
