Sealcon M16 Connector, Elongated, Female Straight, 18 Pin

M16 Connector, Elongated, Female Straight, 18 Pin
Sealcon M16 Connector, Elongated, Female Straight, 18 Pin



Alternative Views:


Price: $53.00
MFG P/N: M16L-FS18P
MFG: Sealcon
Weight (lbs): 0.2



Availability:
In Stock
Product Code: M16L-FS18P
Qty:

Description

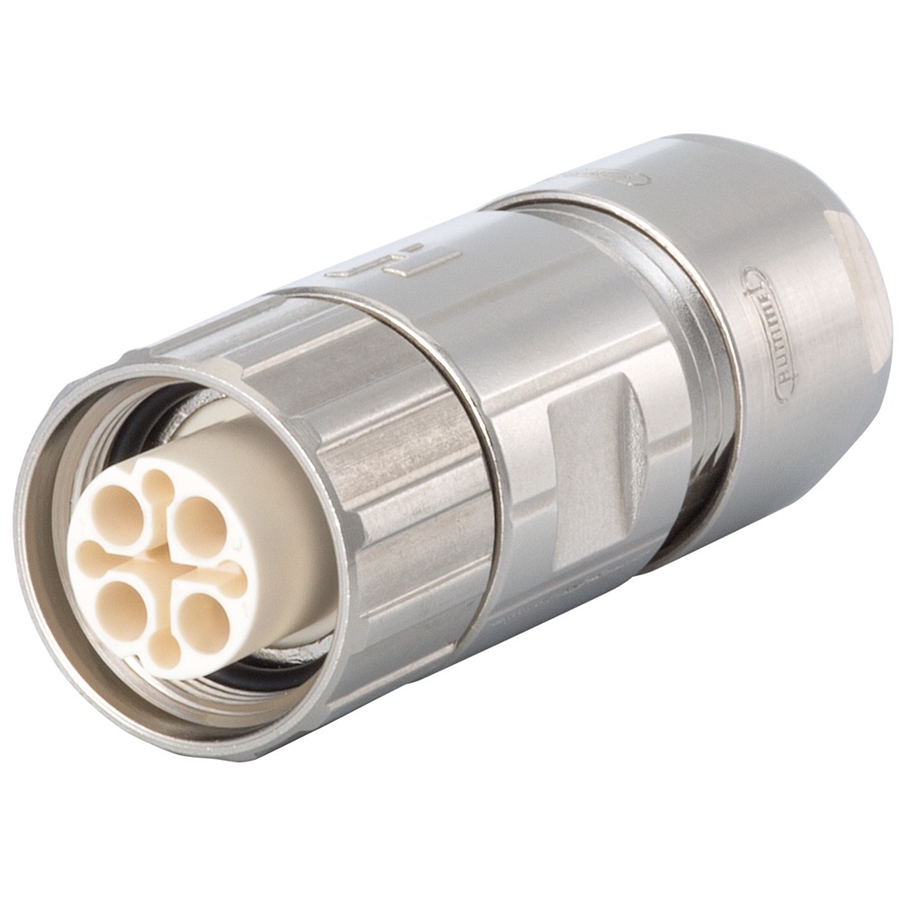

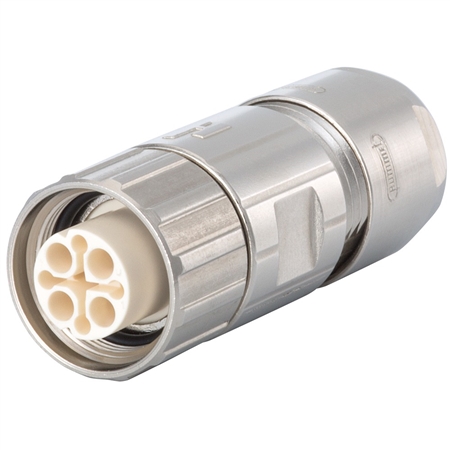

This Sealcon M16 elongated female straight signal connector features an 18 pin insert for 1 mm contacts. The housing is nickel plated brass with brass alloy contacts. The housing can accept 3-6 mm cable. Rated IP67 / IP69K. Comes un-assembled with separate housing, insert, and crimp contacts. Note: Image is for reference, actual product may differ

  • No tools needed to insert or remove contacts
  • Euro-Lock keeps contacts in position
  • EMI shielding
  • Perfect for small drives

Includes:

  • Housing - (1) 3-6 mm (.12"-.24") Cable O.D. (P/N S7.811.300.000)

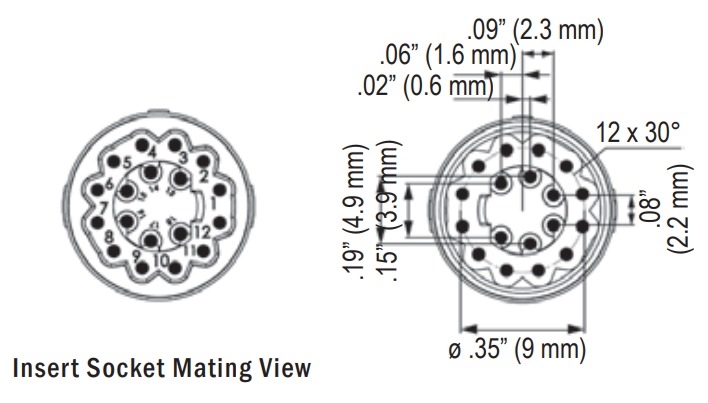

  • Insert - (1) 18 Pin, 3 A, 24V, for crimp contacts (P/N S7.003.988.102)

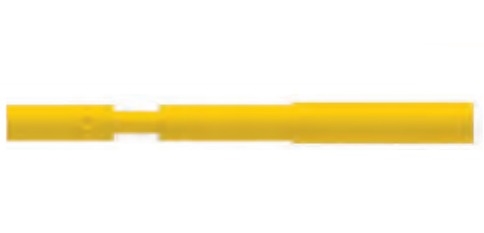

  • Contacts - (18) 28-22 AWG 0.8 mm Crimp Sockets (P/N S7.010.980.802)

Specifications

  • Housing - Nickel Plated Brass

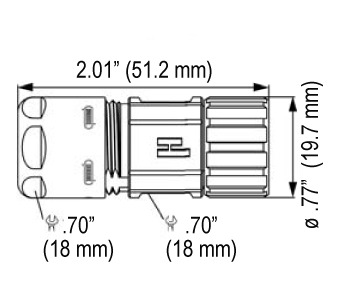

  • Housing Dimensions- 2.01" Length x 0.77" Diameter
  • Insert - PBT
  • Contacts - Brass Alloy
  • Contact Surface - Gold Plated Nickel
  • Orientation - Female Straight
  • Cable Range - 3 - 6 mm (.12"- .24")
  • Contacts - 18
  • Crimp Wire Gauge - 28-22 AWG
  • Operating Temperature - -40 F to 257 F (-40 C to 125 C).
  • Nominal Current- 3 Amps
  • Nominal Voltage - 24 V
  • Min. Mating Cycles- >1000
  • Insulation Resistance - >10^10 MOhm
  • Max. Contact Resistance - 3 mOhm
  • Mating Thread - M16
  • Type of Connection - Crimp Contact
  • IP Protection - IP 67 / IP 69 K

Sealcon 18 Pole Elongated 28-22 AWG Female Straight M16 Connector

Additional Product Information
Housing, insert, and crimp contacts can be sold separately. Custom configurations are also available. Contact us at 800-966-2345 for more info.
