Sealcon CD32M2-BR high quality nickel plated brass cord grips are designed for the toughest applications. Also known as Hummel 1.697.3201.50 (insert Hummel 1.089.2901.19). Sold Individually. Locking nut sold separately.

Specifications

• Thread Size: M32 x 1.5
• Through Hole Diameter: 1.26" (32 mm)
• Body Length: 1.22" (31 mm)
• Thread Length: .31" (8 mm)
• Wrench Flat Dome: 1.57" (40 mm)
• Wrench Flat Body: 1.57" (40 mm)
• Number of Holes: 4
• Hole Diameter: .35" (9 mm)

Features

• Nickel Plated Brass Material with Buna-N Seal, Nylon 6/6 Splined Bushing & Buna-N O-Ring
• Rated IP 65 (NEMA 4x)
• Achieving IP 68 (NEMA 6) is possible, provided that there is an ideal fit
• Flame Protected to UL 94
• Halogen and Phosphorous Free
• Resists salt water, acids, alkalis', gasoline & oils.
• Durable Rugged Construction
• RoHS & Deca BDE, CSA approval

Sealcon M32 x 1.5 Metric Nickel Plated Brass Multi-hole Cord Grips, Strain Relief Fittings or Cable Glands are used by many different industries when connecting wire and cable to their applications. This fitting provides a NEMA 4x (IP 65) rating. The cable cannot be less than 80% of the diameter of the hole to obtain that rating. There also cannot be more than .04" (1 mm). of difference between the cable's diameter and the diameter of the hole. There must be an ideal fit to make the submersible NEMA 6 (IP 68) rating possible. The ACME thread on the CD32M2BR dome top is self locking and makes sure that the overlapping splines apply an even seal. This way the form seal is prevented from being pulled out of the fitting & it gives pull-out protection to your cable so no damage is caused.

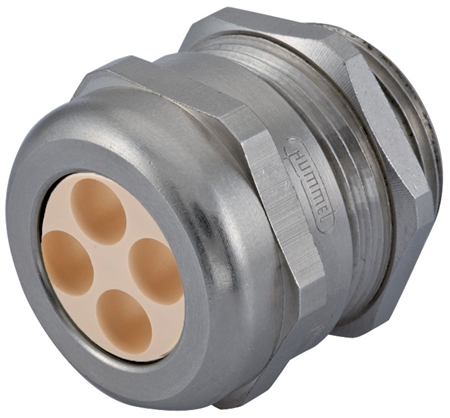

Sealcon CD32M2-BR Metric Strain Relief with 4 Hole Insert
