Sealcon SUPCG101618F Screw Cover Enclosure, 19.85" X 18.08" X 11.27", Solid Cover, Mounting Flange

Sealcon Screw Cover Enclosure, 19.85" X 18.08" X 11.27", Solid Cover & Mounting Flange
Sealcon Screw Cover Enclosure, 19.85" X 18.08" X 11.27", Solid Cover, Mounting Flange

Alternative Views:
Price: $181.17
Note: Please call or email [email protected] for alternatives
MFG P/N: SUPCG101618F
MFG: Sealcon
Weight (lbs): 10.5

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: SUPCG101618F
Qty:

Description

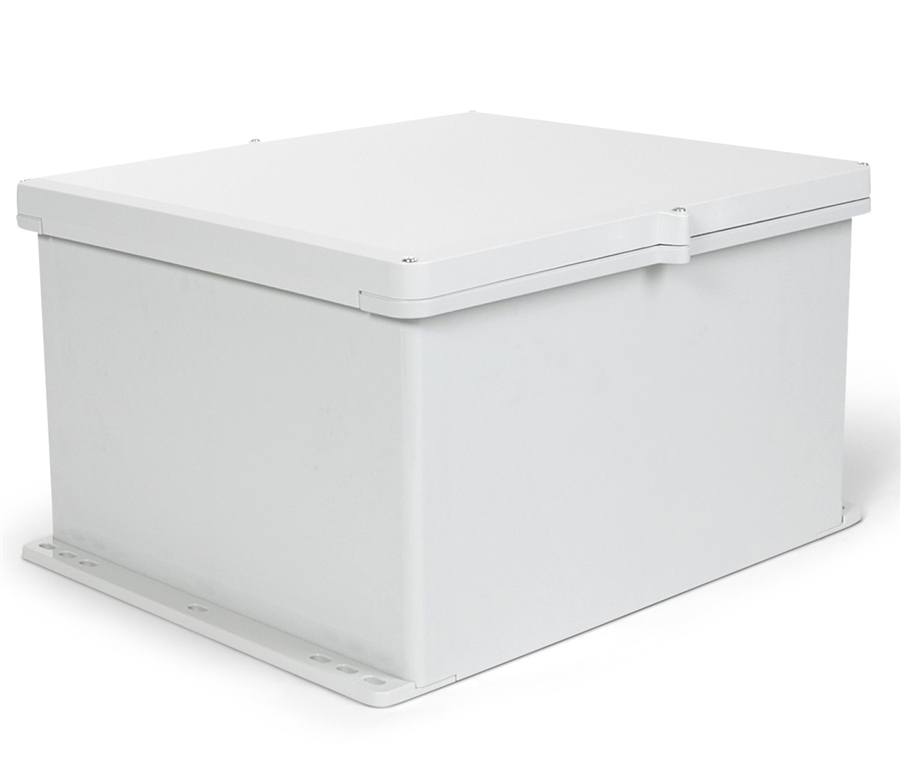

The Sealcon SUPCG101618F wall mount screw cover enclosure is made from polycarbonate with a solid gray cover and mounting flange. Also known as Ensto UPCG181610F

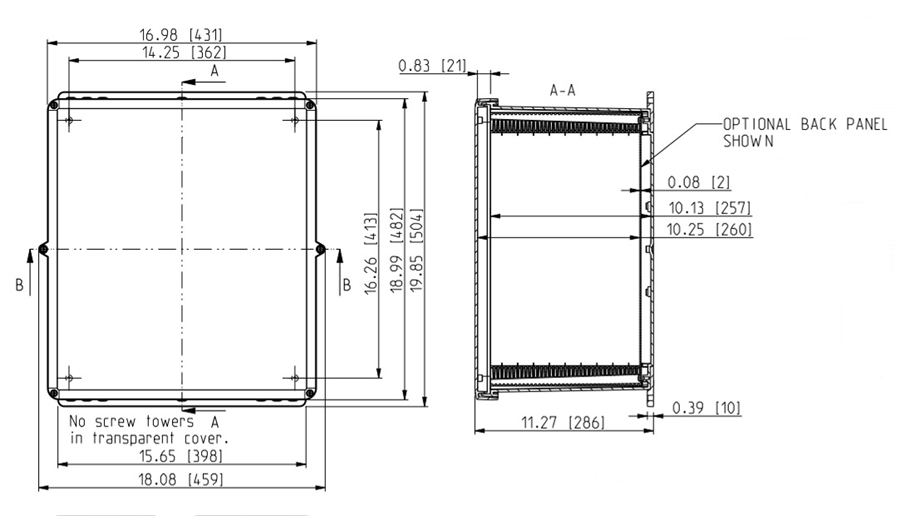

  • Dimensions (with mounting flange): 19.85" Length x 18.08" Width x 11.27" Depth
  • -40 C to 80 C (-40 F to 176 F)
  • Type 4X, 12, 13, 6P
  • Corner 'elevator' brackets to mount the back panel at the desired depth (preinstalled at the bottom)
  • Elevator pieces can be mounted at 1/4" increments
  • 4 mm wall thickness (0.15")
  • Hydrophobic PUR gasket
  • Impact test: IK10
  • Insulation: Class II
  • Rated IP 69 (Total protection from dust and high temperature / high pressure water jets from any direction)
  • Includes cover screws & screws for mounting flange
  • Approvals: CE, RoHS Compliant, UL & CUL Listed

Sealcon U Series Enclosure Installation Instructions
