The Sealcon SUPCG061012HS wall mount hinged lid enclosure is made from polycarbonate with a solid gray cover and padlock clamp. Also known as Ensto UPCG121006HS

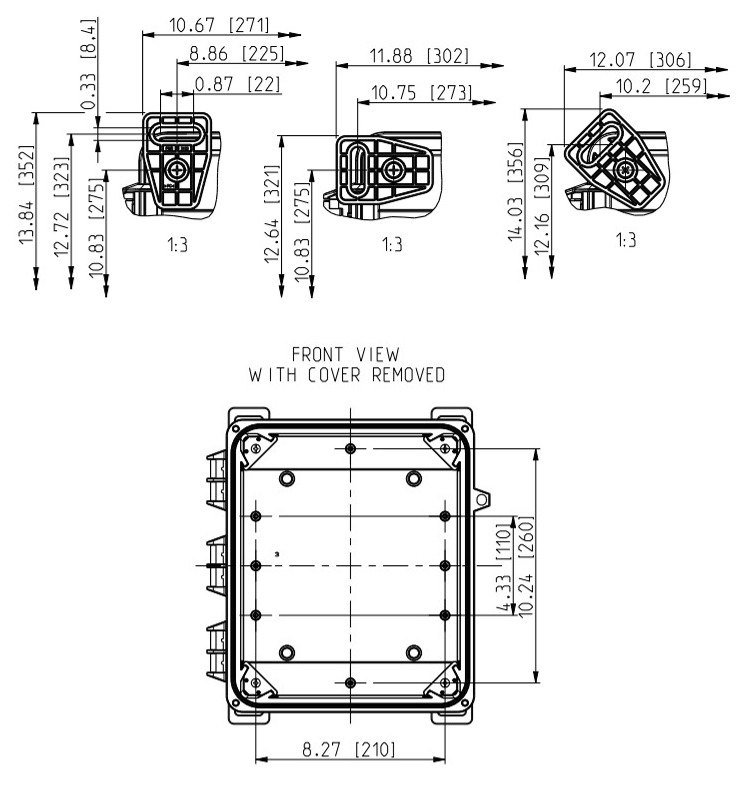

- Dimensions (with mounting feet): 13.84" Length x 12.36" Width x 7.47" Depth
- -40 C to 80 C (-40 F to 176 F)
- Type 4X, 12, 13, 6P
- Hinged lid is screwed down using 2 screws
- Corner 'elevator' brackets to mount the back panel at the desired depth (preinstalled at the bottom)
- Elevator pieces can be mounted at 1/4" increments
- Mounting feet can be attached in one of three positions
- Lid can be locked with a padlock
- 4 mm wall thickness (0.15")
- Hydrophobic PUR gasket
- Impact test: IK10
- Insulation: Class II
- Rated IP 69 (Total protection from dust and high temperature / high pressure water jets from any direction)
- Includes 2 cover screws & screws for mounting feet
- Approvals: CE, RoHS Compliant, UL & CUL Listed
Sealcon U Series Enclosure Installation Instructions
13.84" X 12.36" X 7.47" Enclosure Box with Padlock Clamp UPCG121006HS
|
|
|
 |
|
 |
|
