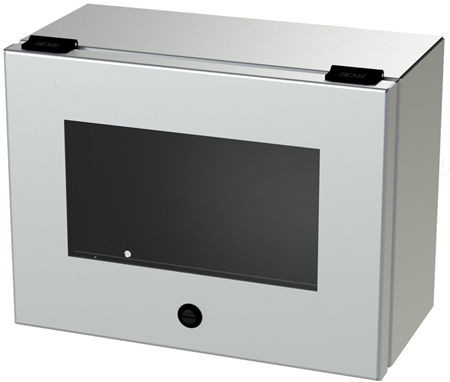

Saginaw Control & Engineering Enviroline Series SCE-L9126ELJWSS is a trough style junction enclosure with window. It is made from 0.063" 304 stainless steel with a #4 brushed finish and measures 9" H x 12" W x 6" D (228.6mm x 304.8mm x 152.4mm). Houses electrical components, instruments, and controls for indoor or outdoor locations that need to be in view. It provides an amount of protection from dirt and moisture.
- Polycarbonate window (4.375" x 8")
- Seams are continuously welded & ground smooth
- Flange trough collar around door opening
- Gasket is oil resistant
- Standoffs for mounting sub-panel included (sub-panel sold separately)
- Hinges are removable
- Door opens 180 degrees
- Features black mini quarter turn latch (operated with a screwdriver)
- Ground stud on door and body
- Mounting holes located on the back
- Includes mounting feet, sealing washer, & hole plugs
- IS6 industry standards - NEMA Type 3R, 4, 4x, 12 and Type 13, UL Listed Type 3R, 4, 4x, and 12, CSA Type 4, 4x, and 12, IEC 60529, IP 66 (Type 3R should be met for outdoor settings)
Saginaw SCE-L9126ELJWSS 9" x 12" x 6" Stainless Steel Trough Style Junction Box
|
|
|
|
|
|
|
