Saginaw SCE-9PBX Extra Deep Push Button Enclosure, 9 Position, 30.5mm

Saginaw Extra Deep Push Button Box, 9 Position, 30.5mm
Saginaw SCE-9PBX Extra Deep Push Button Enclosure, 9 Position, 30.5mm

Alternative Views:
Price: $142.11
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: SCE-9PBX
MFG: Saginaw Control & Engineering
Weight (lbs): 9



Availability: In Stock
Product Code: SCE-9PBX
Qty:

Description

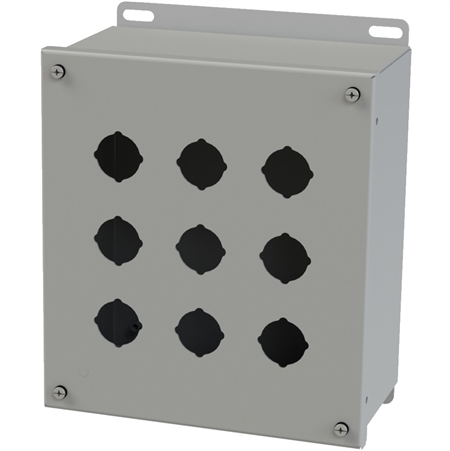

Saginaw Control & Engineering SCE-9PBX is a 9 position extra deep push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 30.5mm pushbutton entrances in a 3x3 layout. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture.

  • 9.5" H x 8.5" W x 4.75" D (241.3mm x 215.9mm x 120.65mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Compatible with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrance
  • Oil / water resistant gasket
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
