Saginaw SCE-9PBI Push Button Enclosure, 9 Position, 22.5mm

Saginaw SCE-9PBI Push Button Box, 9 Position, 22.5mm
Saginaw SCE-9PBI Push Button Enclosure, 9 Position, 22.5mm

Alternative Views:
Price: $122.30
Note: Ships in 5-7 business days, Priority Shipping Unavailable. If stock is depleted, average factory lead time is 2-4 weeks. Contact us to confirm current ship date
MFG P/N: SCE-9PBI
MFG: Saginaw Control & Engineering
Weight (lbs): 8



Availability: In Stock
Product Code: SCE-9PBI
Qty:

Description

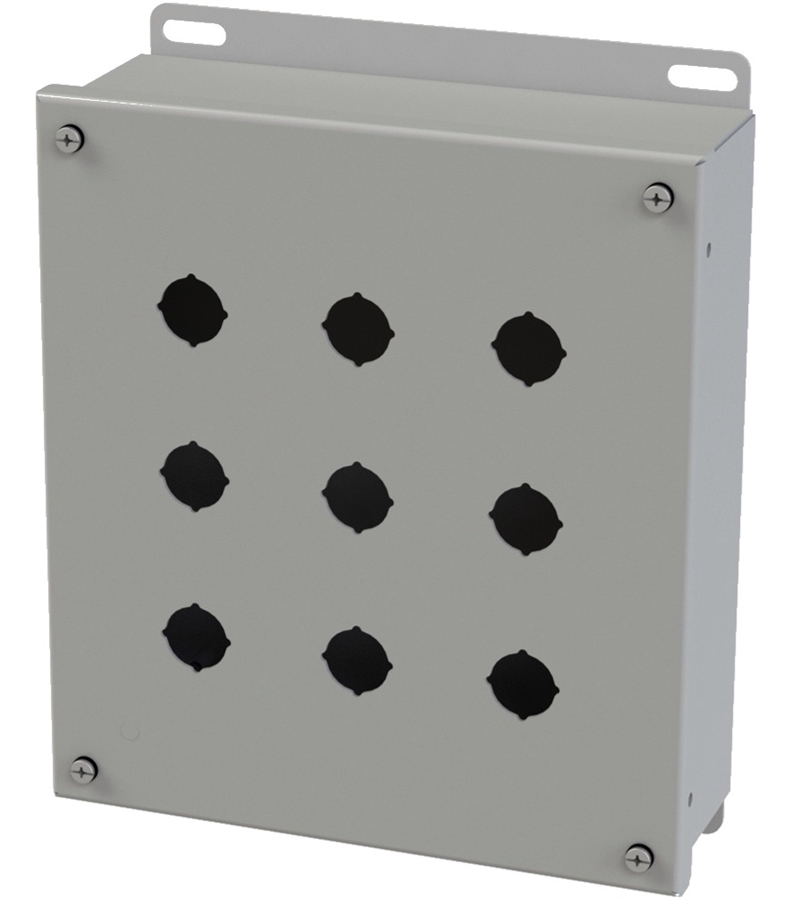

Saginaw Control & Engineering SCE-9PBI is a 9 position push button enclosure. It is made from 0.063" carbon steel with an ANSI-61 gray powder coating and 22.5mm pushbutton entrances in a 3x3 configuration. Ideal for keeping oil-tight push buttons, switches, and pilot lights protected from dirt & moisture. (See link to applicable push buttons below)

  • 9.5" H x 8.5" W x 3" D (241.3mm x 215.9mm x 76.2mm)
  • Continuously welded seams
  • Cover screws thread into sealed wells
  • Works with any brand of oil-tight push buttons, switches, or pilot lights
  • 4 way standard push button entrances
  • Gasket is oil & water resistant
  • Welded mounting provision located on the back at the top and bottom
  • IS2 industry standards - NEMA Type 4, 12 and Type 13, UL Listed Type 4 and 12, CSA Type 4 and 12, IEC 60529, IP 66
