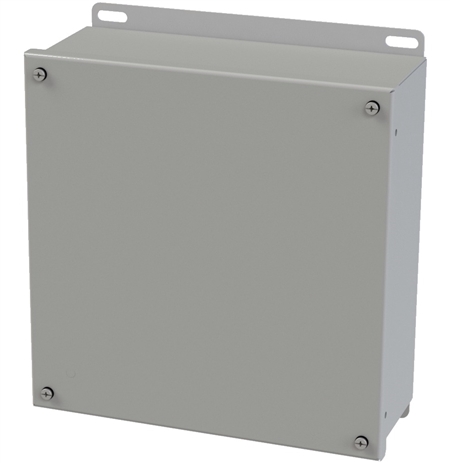

Saginaw SCE-1010SC Carbon Steel Screw Cover Enclosure, 10.13 x 10 x 4 in.
Organize control wiring in a steel enclosure with a nearly square face and 4 inch depth. The screw cover design uses an oil resistant gasket for sealing.
✅ Applications
Use this model for a wiring junction or small control box where mounting depth is limited. Select the subpanel around the intended component arrangement.
Compact Protection for Control Wiring

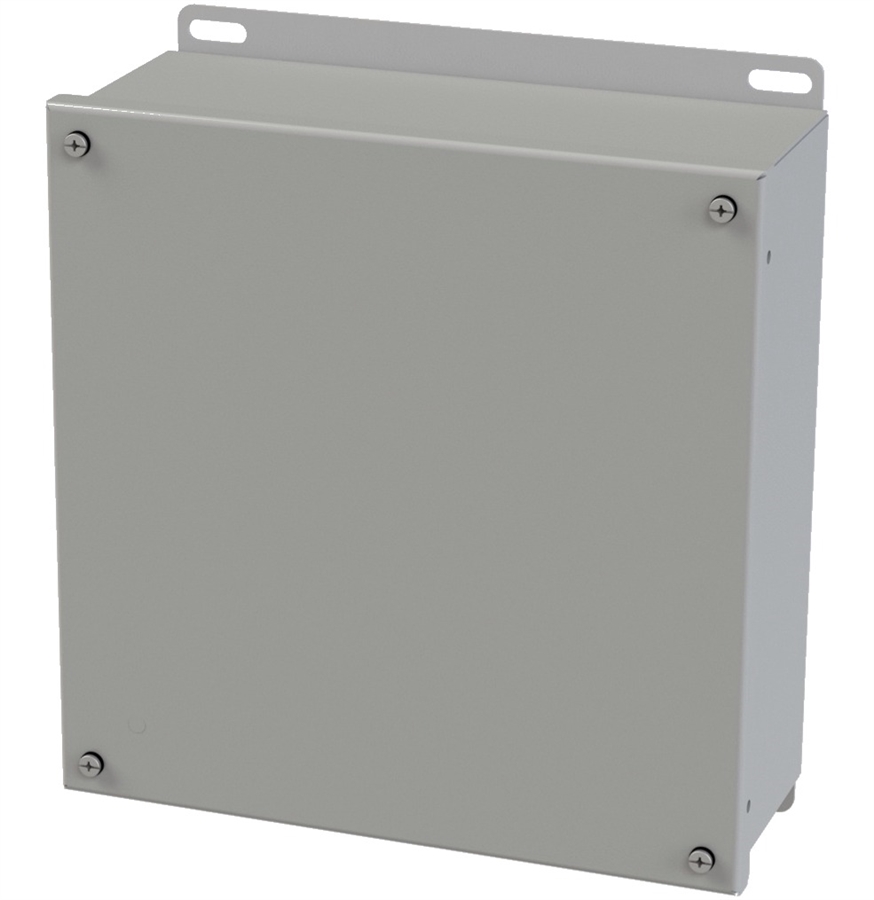

The Saginaw Control & Engineering SCE-1010SC screw cover enclosure houses electrical connections in a shallow carbon steel body. Its 10 inch width provides room to arrange a compact terminal layout while keeping the enclosure depth to 4 inches.

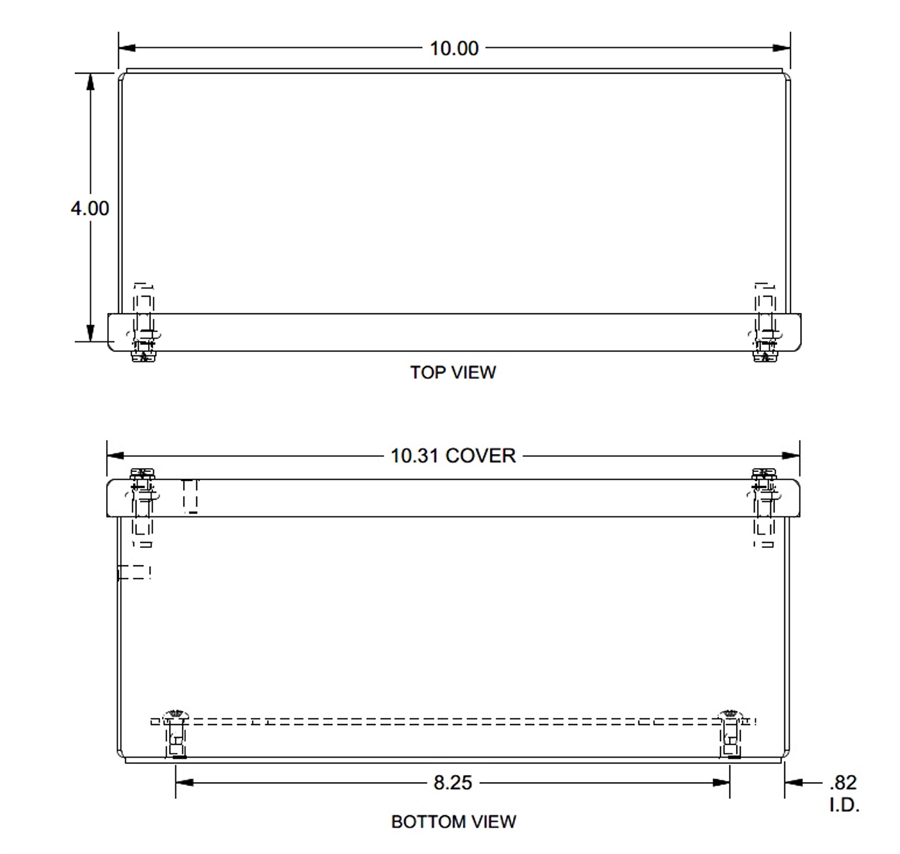

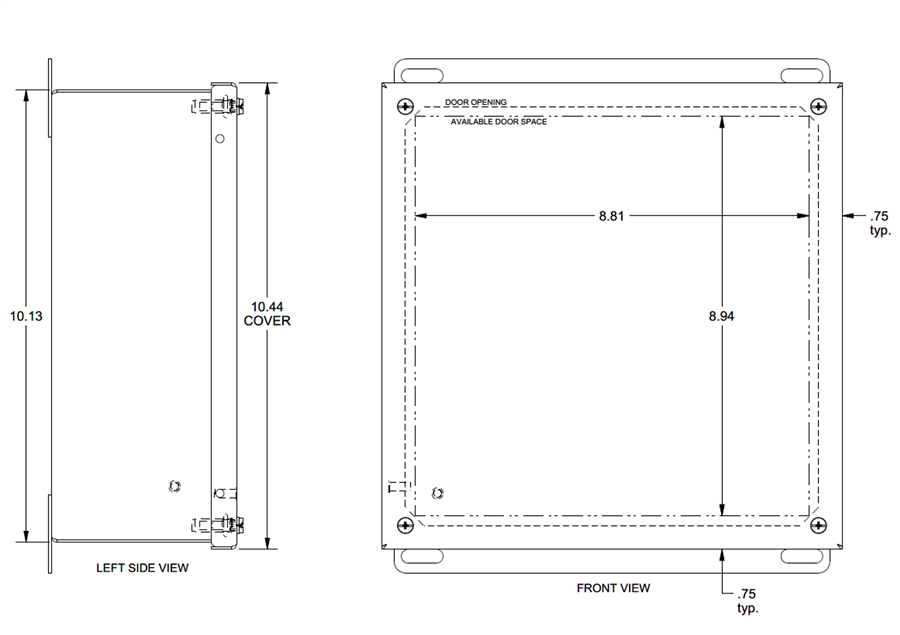

The enclosure measures 10.13" H x 10" W x 4" D and is made from 0.063" carbon steel with an ANSI-61 gray powder coating. Its continuously welded seams are ground smooth. Cover screws thread into sealed wells, and an oil resistant gasket seals the cover.
Key Features & Benefits
- Welded Construction: Continuously welded seams are ground smooth.
- Unpunched Housing: No holes or knockouts.
- Cover Attachment: Screws thread into sealed wells.
- Gasket: Oil resistant material.
- Subpanel Support: Mounting standoffs are provided. Subpanels are sold separately.
- Rear Mounting: Mounting provisions are located on the back at the top and bottom.
Specifications
|
Part Number
|
SCE-1010SC
|
|
Brand
|
Saginaw Control & Engineering
|
|
Enclosure Type
|
Screw cover enclosure
|
|
Dimensions (H x W x D)
|
10.13" x 10" x 4"
|
|
Metric Dimensions (H x W x D)
|
257.302 x 254 x 101.6 mm
|
|
Material
|
Carbon steel
|
|
Material Thickness
|
0.063"
|
|
Finish
|
ANSI-61 gray powder coating
|
|
Cover Fastening
|
Screws threaded into sealed wells
|
|
Gasket
|
Oil resistant
|
|
Holes and Knockouts
|
None
|
|
Mounting Provisions
|
Rear, top and bottom
|
|
Subpanel Standoffs
|
Provided
|
|
Subpanel
|
Sold separately
|
|
Industry Standard Group
|
IS4
|
|
NEMA Types
|
3R, 4, 12, 13
|
|
UL Listed Types
|
3R, 4, 12
|
|
CSA Types
|
3R, 4, 12
|
|
IEC Standard
|
IEC 60529
|
|
Ingress Protection
|
IP66
|
📦 Enclosure and Subpanel Provisions
One SCE-1010SC screw cover enclosure with standoffs for mounting a subpanel. The subpanel is sold separately.
⚠️ Type 3R Installation Requirements
Special IS4 installation instructions apply to maintain the Type 3R environmental rating. Follow the instructions located on the enclosure door when installing this model.
🔧 Mounting and Cable Entry

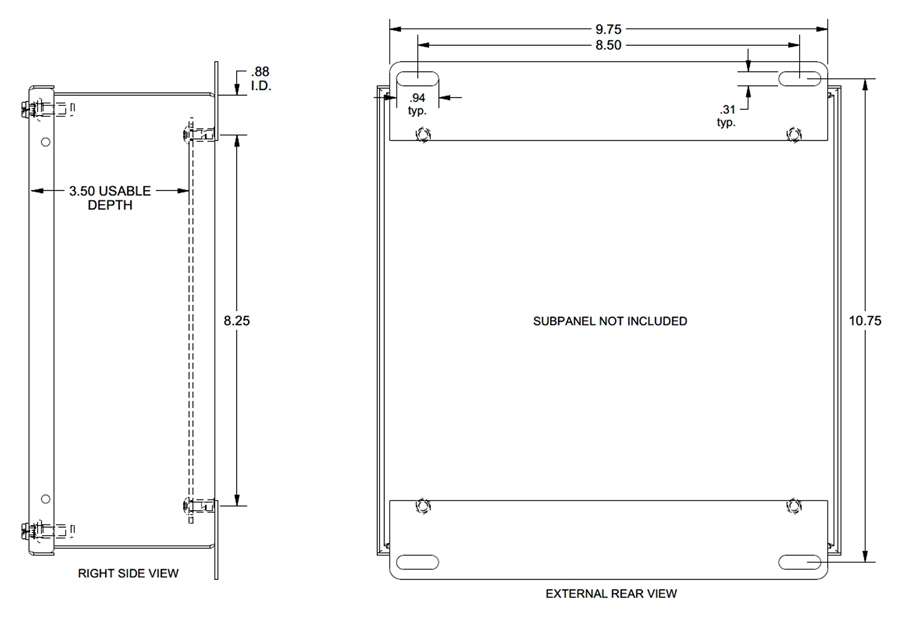

Use the mounting provisions on the back at the top and bottom. Plan cable entry locations because the enclosure has no holes or knockouts. The internal standoffs support a compatible subpanel, which is purchased separately.
|
|
|
 |
|
 |
|
