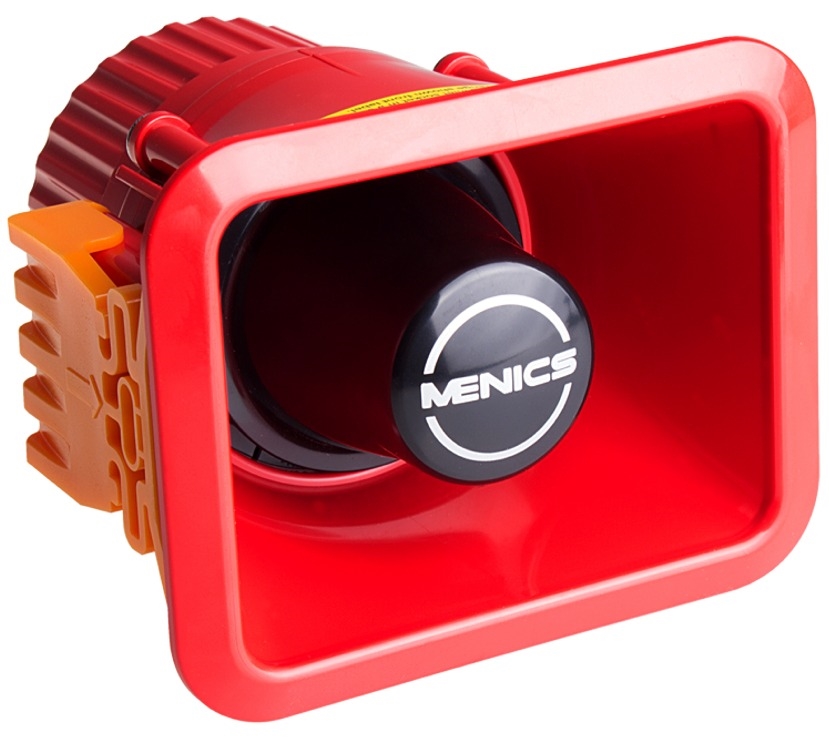

The Menics MSP-LPS-FF-R is a red panel mount alarm buzzer with a lead wire connection and a rated voltage of 100-240V AC. Plays one of 3 siren sounds, depending on the wiring (see diagram). Front panel is rated IP 65, making it ideal for environments with excess dust or moisture. Features space saving housing. RoHS compliant.
Specifications

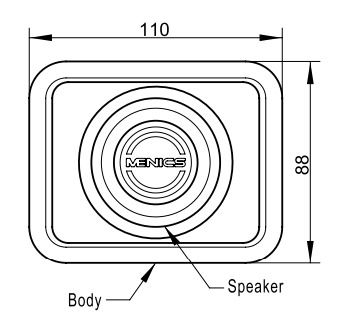

- Alarm Dimensions- 110 mm Width x 88 mm Height x 114 mm Length (4.33" x 3.46" x 4.5")
- Connection- Lead Wire (see MSP-TPS-FF-R below for model with terminal connection)
- Mounting- Panel Mount (see MSP-LBS-FF-R below for wall mount version)
- Sound Type- 3 Channel Siren (Fire Truck, Police Car, Ambulance) - see MSP-LPM-FF-R below for 3 channel melody
- Rated Voltage- 100-240V AC
- Current Consumption- 0.13 Amp
- Alarm Housing Color- Red with Black Horn
- Housing Material- ABS Plastic Body with NBR Horn
- Max Volume- 110 decibels (1 Meter)
- Insulation Resistance- Over 100 MOhm (500V DC mega between terminal & case)
- Withstand Voltage- 500V AC 50/60Hz 1 min.
- Operating Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 65 C (-4 F to 149 F)
- Operating Humidity- 45-85% Relative Humidity
- Wire Size & Length- 2464 UL / 22 AWG, 6P, 450mm
- Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS Compliant

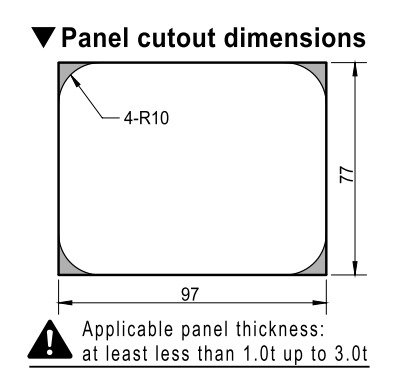

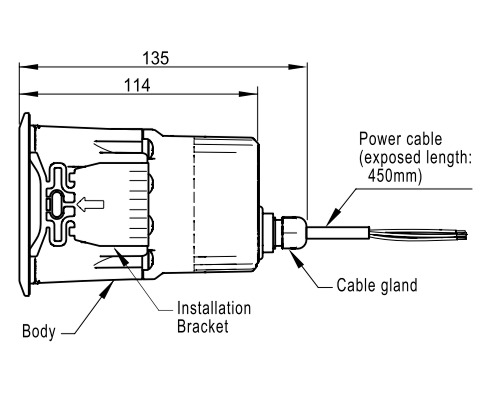

Installation: First remove the orange installation brackets on the sides, using a screwdriver. Then going from the front side, insert the speaker into the panel cutout. Afterward reattach the installation brackets from the back side using the included screws to hold the alarm in place.
