The Menics MSP-HP15 is a white panel mount horn speaker with a 15W output and max volume of 108 dB. Features a light weight, space saving housing. It features a low profile once mounted, with only 5 mm in front of the panel. Front speaker is rated IP 65, which is helpful in areas with excess dust or moisture. RoHS compliant.

Specifications

• Speaker Dimensions- 110 mm Width x 88 mm Height x 93 mm Length (4.33" x 3.46" x 3.66")
• Cutout Dimensions- 97 mm x 77 mm (3.82" x 3.03")
• Housing Color- White with Black Horn
• Housing Material- ABS Plastic Body with NBR Horn
• Mounting- Panel Mount
• Max Rated Output- 15 Watts
• Impulse- 6 Ohm
• Frequency Band- 1000-4000 Hz
• Max Volume- 108 decibels (at 1 meter)
• Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 65 C (-4 F to 149 F)
• Vibration Resistance- 10~55Hz (Cycle: 1 minute) Multi-amplitude, 0.75mm X,Y,Z - 1 hour in each direction
• Applicable Wiring Specification- 2464 UL / 22 AWG, 2P, 450 mm (17.72")
• Protection Rating- IP 65 (Total protection from dust and water jets from any direction)
• Approvals- RoHS Compliant

Installation: Use a screwdriver to remove the side brackets. Insert the speaker into the panel cutout and reattach the side brackets. The fixing bolts are attached to keep the speaker from shaking (bolt tightening torque 0.7 - 0.8 N.m)

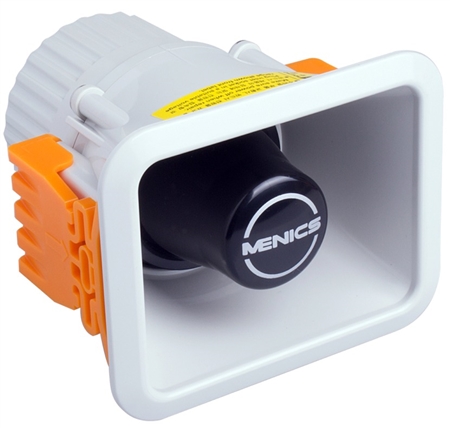

Menics White Panel Mount Horn Speaker
