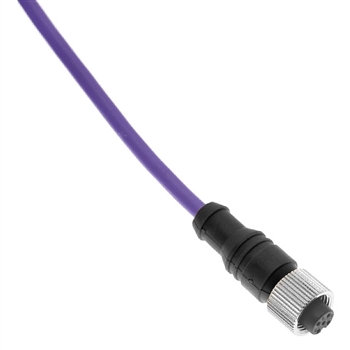

The Mencom PBEC-3FP-1M Profibus DP female straight cordset features a 3 pin insert, 22 gauge wire and 1 meter of cable. The body is flame resistant black PVC with violet PVC jacketed cable, gold plated copper alloy contacts and drain wire. The cable is rated at 300V and 4A. Rated IP 67 for dirt and moisture protection. Operating temperature -40 C to 80 C (-40 F to 176 F). Profibus DP molded cables feature plug and play capability for an easy set-up. They are used most often in applications for sensors and actuators in automation equipment, working through a main control unit.

Specifications

• Body- Black PVC
• Insert- Polyamide
• Contacts- Gold Plated Copper Alloy
• Coupling Nut- Nickel Plated Brass
• Cable- Violet PVC jacket, Profibus DP Cable, 1 PR 22 AWG w/Drain Wire
• Shielding- Yes
• Rated Voltage- 300 V
• Rated Current- 4 Amps
• Wire Gauge- 22
• Pin Count- 3
• Cable Length- 1 meter (3.28 ft)
• Cable O.D.- 0.335
• Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
• Orientation Head- Female Straight
• Coupling Thread- Female
• Mating Thread / Type Head- M12
• Nut- No
• Approvals- UL & CUL Listed

Mencom PBEC-3FP-1M 1 Meter 3 Pin Female Profibus DP M12 Cordset
