Mencom PCGU-M63 M63 1.053" - 1.872" (27 - 48 mm) O.D. Cable Gland, Gray

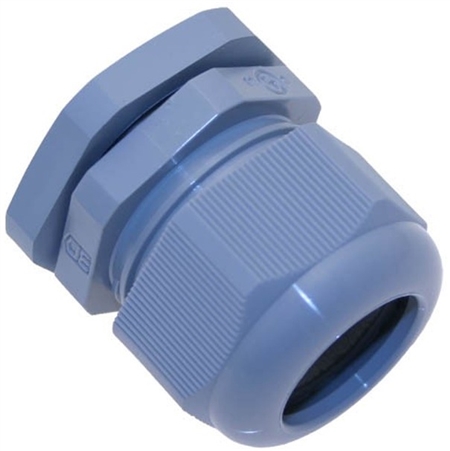

Mencom PCGU-M63 M63 Gray Strain Relief Fitting
Mencom PCGU-M63 M63 1.053" - 1.872" (27 - 48 mm) O.D. Cable Gland, Gray

Alternative Views:
Price: $30.58
Note: Delivery: 2-5 Business Days
MFG P/N: PCGU-M63
MFG: Mencom
Weight (lbs): 0.3

Quantity in Stock :6


Availability: In Stock
Product Code: PCGU-M63
Qty:


Description


Mencom PCGU-M63 gray plastic cable gland has M63 x 1.5 Thread. Accommodates 1.053" - 1.872" (27 - 48 mm) O.D. cable. Sold Individually. This strain relief fitting has a dual grommet system to accommodate more cable sizes. For larger diameter cables, the inner grommet is removed from the outer grommet. For smaller cables, no change to the strain relief is needed. Comes with locknut & O-Ring. Rated IP 68.

Specifications

  • Cord Grip Material - Polyamide
  • Inner Grommet- TPE
  • Outer Grommet- CR/NBR
  • Tightening Torque- 7.5 Nm
  • Temperature- -20 C to 100 C
  • Color - Gray
  • Mounting Thread- M63 x 1.5
  • Mounting Hole Clearance- 63.2 mm
  • Gland Upper Range- 1.872" (47mm)
  • Gland Lower Range- 1.053" (27mm)
  • Nut- Yes
  • Ingress Protection- IP 68 (Total protection from dust and prolonged immersion in water)
