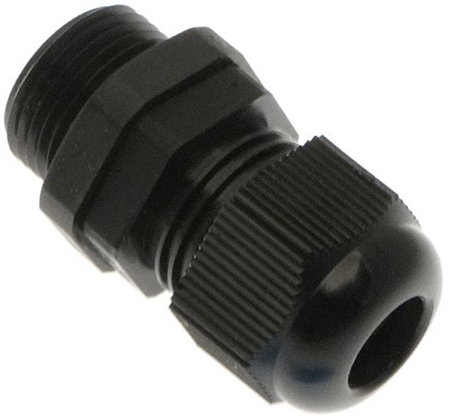

PCG-11RL-B black plastic long body cable gland has PG 11 thread. Accommodates .118 - .275" (3 - 7 mm) cable. This cord grip is designed to be liquid tight and can be used with ILME enclosures and hoods. The PCG11RLB can be found in many different applications and industries, as it creates a protective seal for cables that pass through enclosures. Sold Individually. Includes locknut. Rated IP 68 for protection when encountering dirt and moisture.
- Gives strain relief for cable connections
- Tight seal keeps out dirt and moisture
- IP 68-5 BAR rating, which is similar to NEMA 6P
- Withstands up to 5 atmospheres of pressure under water
- Grommet provides the seal around cable
- No O-rings are necessary to reach an IP 68 rated seal against the enclosure
- Raised rings underneath the hex nut provide the seal
- Intended for use with round cables, do not use with flat or ribbon cables.
- Has reduced size insert
Specifications
- Cable Gland Material- Polyamide
- Grommet- NBR
- O-Ring- Not necessary for sizes PG 7 to PG 21
- Color- Black
- Temperature- -20 C to 100 C
- Tightening Torque- 3.75 Nm
- Mounting Thread- PG 11
- Gland Upper Range- 0.275"
- Gland Lower Range- 0.118"
- Nut- Yes
- Ingress Protection- IP 68 (Total protection from dust and continuous immersion in water)
|
|
|
 |
|
 |
|
