Mencom NANP-T-4FP-5M-R Female Right Angle, 4 Pole, PUR, 5 M, M8 Cordset

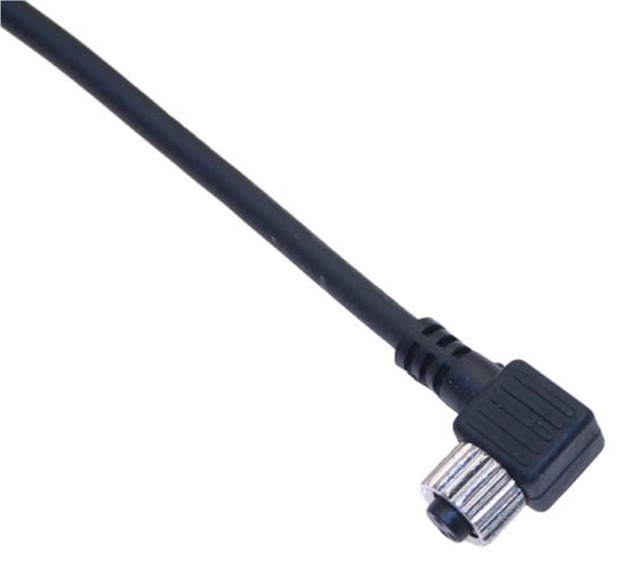

Mencom NANP-T-4FP-5M-R Female Right Angle Pico M8 Cordset
Mencom NANP-T-4FP-5M-R Female Right Angle, 4 Pole, PUR, 5 M, M8 Cordset



Alternative Views:


Price: $36.64
MFG P/N: NANP-T-4FP-5M-R
MFG: Mencom
Weight (lbs): 0.3

Quantity in Stock :6


Availability:
In Stock
Product Code: NANP-T-4FP-5M-R
Qty:


Description


The Mencom NANP-T-4FP-5M-R Pico (M8) molded cable cordset features a female right angle connector on one end. It has a 4 pin insert, 24 gauge wire and 5 meters of cable. The body is black PUR with gold plated copper alloy contacts and the cordset is rated at 60V and 3 A. Rated IP 67. Operating temperature -40 C to 80 C (-40 F to 176 F). Mencom M8 cordsets have an M8 size mating thread and are mainly used for smaller sensors and actuators.

Specifications

  • Body- Black PUR
  • Insulator- Polyamide
  • Contacts- Gold Plated Copper Alloy
  • Coupling Nut- Nickel Plated Brass
  • Rated Voltage- 60 V
  • Rated Current- 3 Amps
  • Wire Gauge- 24
  • Pin Count- 4
  • Cable Length- 5 M (16.4')
  • Cable O.D.- 0.18
  • Ingress Protection- IP 67 (Total protection from dust and temporary immersion in water - 1 meter (3.28') for up to 30 minutes)
  • Orientation Head- Female Right Angle
  • Coupling Thread- Female
  • Mating Thread / Type Head- M8

Mencom NANP-T-4FP-5M-R Female Right Angle 4 Pin M8 Molded Cable

Additional Product Information
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Can be compatible with Brad Harrison/Molex 120086-0044

Mencom M8 Molded Cordset Part Number Guide
