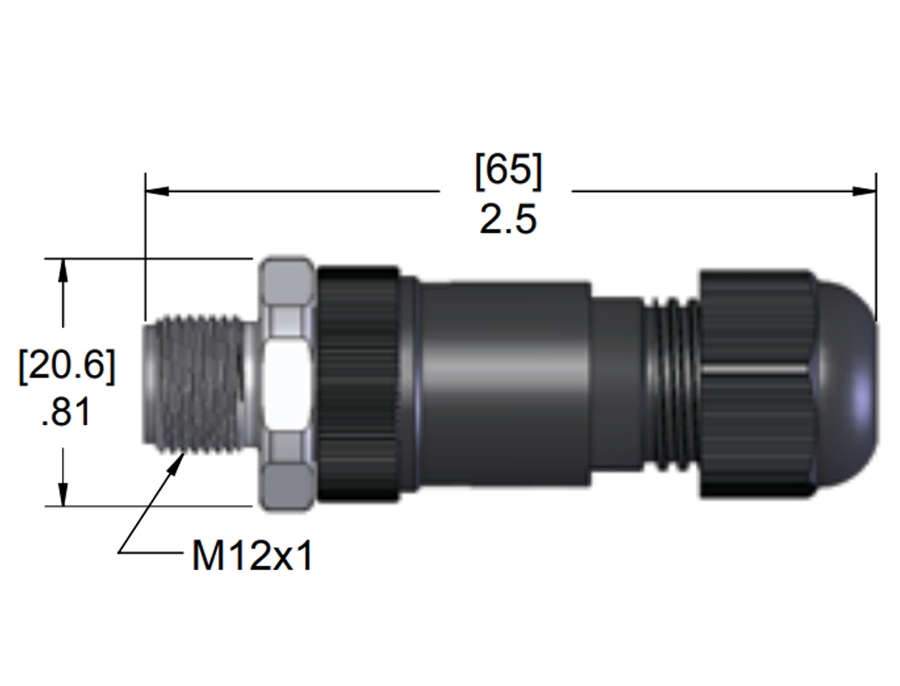

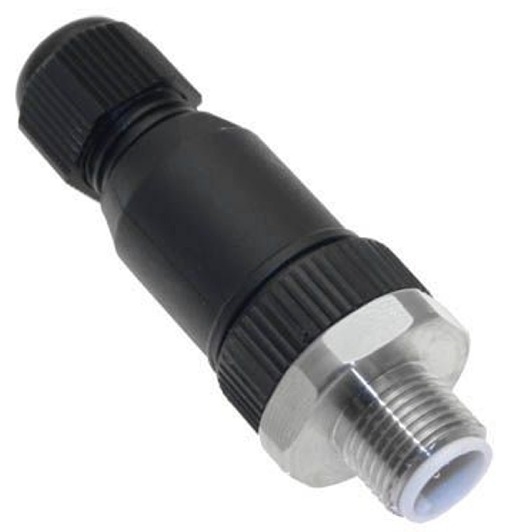

The Mencom MDC-4MP-FW07-SS Micro DC (M12) male straight field wireable plug features a 4 pin insert. The PG 7 cable entry accepts 3-6.5 mm cable. The body is black polyamide with gold plated copper alloy contacts & stainless steel coupling nut. The MDC-4MP-FW07-SS has a rated voltage of 250V and a rated current of 4A. This M12 connector can be wired by inserting the wires into the screw terminal contacts. It is liquid tight and works with other Mencom MDC series M12 connectors. Rated IP67 for dust and water protection. Operating temperature: -25 C to 85 C (-13 F to 185 F). Mencom MDC hardwired plugs are known by their M12 coupling nut and single keyway. They have plug and play capability for immediate use in different applications, particularly in sensors.
Specifications
