Mencom MDCM-8MR-PCB-R M12 8-Pole Male Right Angle Receptacle, Shielded, 2A

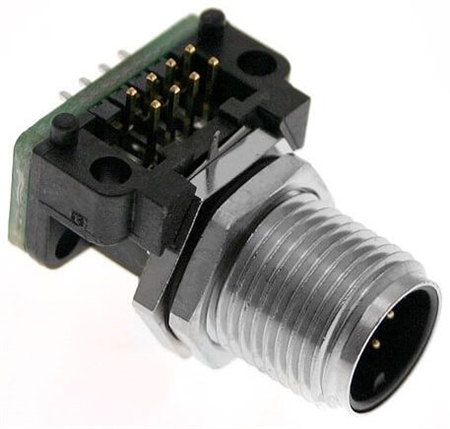

Mencom M12 Receptacle - MDCM-8MR-PCB-R
Mencom MDCM-8MR-PCB-R M12 Receptacle, 8 Pole, Male Right Angle, 4A, M12, Shielded

Alternative Views:
  • Meets North American safety standards to be UL & CUL listed
  • Grounding tab improves electrical safety
  • Mounts onto printed circuit boards
  • Rated IP69 to be protected from dust and high pressure water jets
Price: $22.94
Note: Delivery: 2-5 Business Days
MFG P/N: MDCM-8MR-PCB-R
MFG: Mencom
Weight (lbs): 0.1

Quantity in Stock :16


Availability: In Stock
Product Code: MDCM-8MR-PCB-R
Qty:

Description


The Mencom MDCM-8MR-PCB-R is a right-angle, shielded Micro DC (M12) male receptacle with an 8-pin insert with standard M12 mating thread and a single keyway. Made with a polyamide housing and gold-plated copper alloy contacts, it includes a grounding tab for enhanced electrical safety. This receptacle is rated for 30V and 2A, offering IP69 protection against dust, water, and high-pressure washdowns, making it suitable for harsh industrial environments. Mencom M12 receptacles provide reliable plug-and-play connectivity for sensors and actuators

Specifications

  • Body: Polyamide
  • Fittings: Nickel Plated Brass
  • Contacts: Gold Plated Copper Alloy
  • Rated Voltage: 30V
  • Rated Current: 2 Amps
  • Pin Count: 8
  • Ingress Protection: IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head: Male Right Angle
  • Coupling Thread: Male
  • Mounting Thread: M12
  • Mating Thread: M12
  • Mounting Style: Front Mount
  • Nut: Yes
  • Shielding: Yes
  • Termination: PCB
  • Recommended Panel Thickness: 0.125" Max
  • Approvals: UL & CUL Listed
