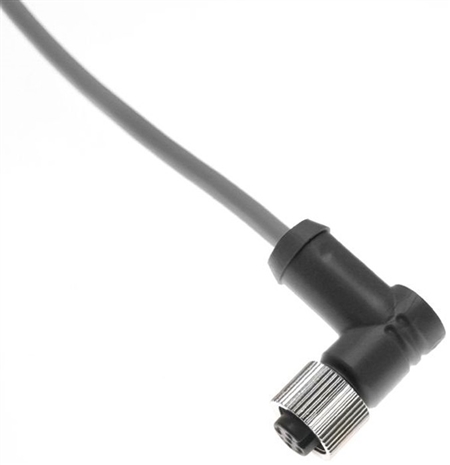

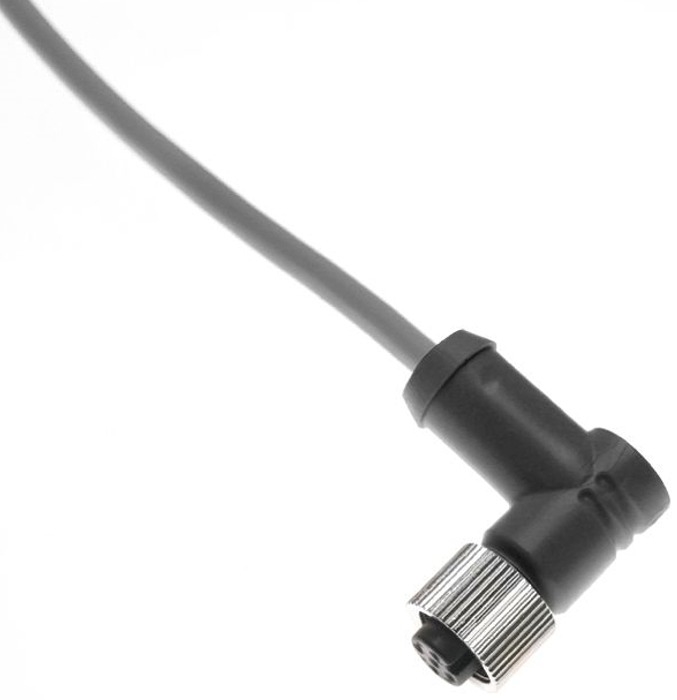

The Mencom MEC-5FP-10M-R Euro AC (M12) female right angle cordset features a 5 pin insert, 22 AWG wire and 10 meters of cable. The body is black PVC with gold plated copper alloy contacts. The gray cable is rated at 300V and 105 C. Rated IP 69. Operating temperature -40 C to 105 C (-40 F to 221 F). Mencom MEC B-Coded cordsets use an M12 coupling nut, have a single reverse keyway, and provide plug and play solutions for various applications.
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Green/Yellow
Specifications
- Body- Black PVC
- Insulator- Polyamide
- Contacts- Gold Plated Copper Alloy
- Coupling Nut- Nickel Plated Brass
- Cable- 22/5 AWM Gray PVC Jacket
- Rated Voltage- 300 V
- Rated Current- 4 Amps
- Wire Gauge- 22
- Pin Count- 5
- Cable Length- 10 meters (32.8 ft)
- Cable O.D.- 0.23
- Ingress Protection- IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head- Female Right Angle
- Coupling Thread- Female
- Mating Thread / Type Head- M12
- Nut- No
- Approvals- UL & CUL Listed
Mencom MEC-5FP-10M-R 5 Pin 10 Meter Right Angle B-Coded M12 Molded Cable
