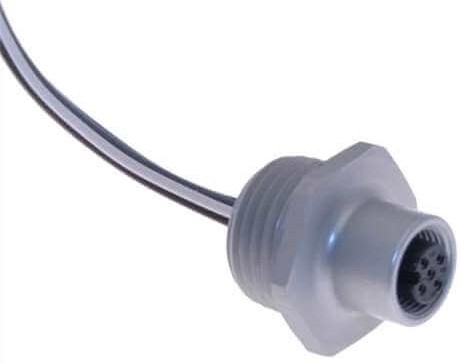

The Mencom MDC-5FR-2-2M M12 Female Receptacle Connector has 5-pin insert with a 2-meter (22 AWG) lead wire and a 1/2" NPT thread.
Constructed with a clear anodized aluminum shell and gold-plated copper alloy contacts, this M12 connector ensures reliable performance and long-term corrosion resistance. The 300V wire rating and IP69 protection make it ideal for harsh environments, including washdown areas and factory automation lines.
Rated for temperatures from -40°C to 105°C (-40°F to 221°F), this receptacle performs consistently in extreme conditions. The plug-and-play compatibility simplifies installation.
Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black
Pin #5 - Gray
Specifications
- Body: Clear Anodized Aluminum
- Insulator: Polyamide
- Contacts: Gold Plated Copper Alloy
- Wire Gauge: 22 AWG UL1007/1569
- Rated Voltage: 300V
- Rated Current: 4 Amps
- Pin Count: 5
- Cable Length: 2 Meter (6.56 Feet)
- Ingress Protection: IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
- Orientation Head: Female Straight
- Coupling Thread: Female
- Mounting Thread: 1/2" NPT
- Mating Thread: M12
- Mounting Style: Front Mount
- Nut: No
- Termination: Discrete
- Approvals: UL & CUL Listed
