Mencom MDC-4MR-2-SS M12 Receptacle - 4 Pole Male Connector, 4A, 1/2" NPT, Stainless Steel, 12" Lead

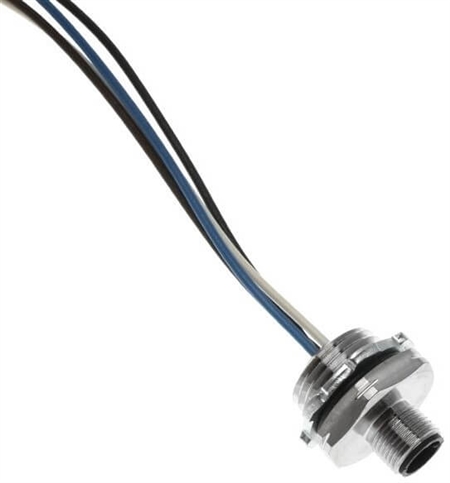

Mencom M12 Receptacle - MDC-4MR-2-SS
Mencom MDC-4MR-2-SS M12 Receptacle, 4 Pole, Male Straight, 4A, 1/2" NPT, 12"

Alternative Views:
  • UL & CUL listed to meet North American safety standards
  • Uses UL1007/1569 rated 22 AWG wire for flame resistance
  • IP69 ingress protection from dust and water
  • Robust, vibration-resistant mounting with 1/2" NPT thread
  • Discrete termination for flexible wiring
Price: $24.96
Note: Delivery: 2-5 Business Days
MFG P/N: MDC-4MR-2-SS
MFG: Mencom
Weight (lbs): 0.12

Quantity in Stock :287


Availability: In Stock
Product Code: MDC-4MR-2-SS
Qty:


Description


The Mencom MDC-4MR-2-SS is a Micro DC (M12) male straight receptacle designed for demanding industrial automation environments. It features a 4-pin insert, 22 AWG wire, and a 12" lead length, making it ideal for sensor and actuator connections in automated systems. The 1/2" NPT mounting thread allows for secure panel installation, while the M12 mating thread with single keyway ensures reliable, vibration-resistant connections.

  • Stainless steel housing & gold plated copper alloy contacts offer strong corrosion resistance
  • IP69 rated for protection against high pressure washdowns
  • Operating temperature range -40°C to 105°C (-40°F to 221°F)
  • Ideal for factory automation, robotics, machine vision, and control systems
  • Plug and play connectivity reduces installation time

Pin #1 - Brown
Pin #2 - White
Pin #3 - Blue
Pin #4 - Black

Specifications

  • Shell: Stainless Steel
  • Insert: Polyamide
  • Contacts: Gold Plated Copper Alloy
  • Wire Gauge: 22 AWG UL1007/1569
  • Rated Voltage: 300V
  • Rated Current: 4 Amps
  • Pin Count: 4
  • Cable Length: 12" (0.3 Meter)
  • Ingress Protection: IP 69 (Total protection from dust as well as high pressure and high temperature water jets from any direction)
  • Orientation Head: Male Straight
  • Coupling Thread: Male
  • Mounting Thread: 1/2" NPT
  • Mating Thread: M12
  • Mounting Style: Front Mount
  • Nut: No
  • Termination: Discrete
  • Approvals: UL & CUL Listed
