Menics PTE-SCF-102-R-B 56 mm 1 Stack LED Tower Light, Red, Steady & Flashing, Direct Mount, 24V

Menics PTE-SCF-102-R-B 1 Tier LED Tower Light, Red
Menics PTE-SCF-102-R-B 56 mm 1 Stack LED Tower Light, Red, Steady & Flashing, Direct Mount, 24V

Alternative Views:
Price: $62.30
Note: Please call or email [email protected] for alternatives
MFG P/N: PTE-SCF-102-R-B
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: PTE-SCF-102-R-B
Qty:

Description

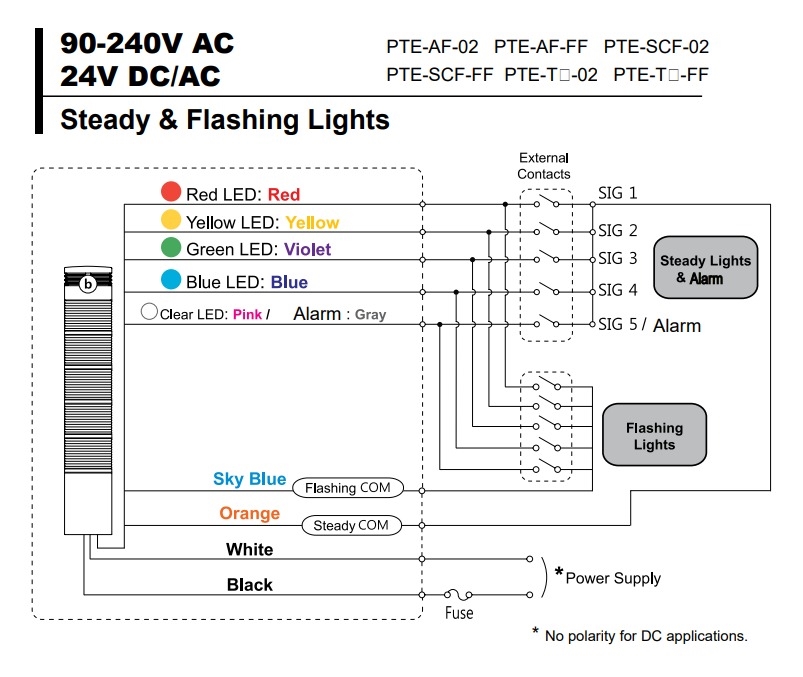

The Menics PTE-SCF-102-R-B 1 stack LED tower light has a 56mm diameter and is rated for 24V. It has a red lens with a steady & flashing light and is prewired with 25" lead. This PTE series direct mount light has a modular system, making it easier to switch out parts if needed. It has prism cut lenses for optimal light distribution. The tower light itself comes pre-assembled. Perfect for applications in factory automation. Steady or flashing mode depends on how it is wired (see wiring diagram). Rated IP 65.

Specifications

  • Light Operation- Steady & Flashing
  • Power Supply- 24V AC/DC
  • Mounting/Connection- Direct Mount / Lead Wires (see mounting accessories below)
  • Lead Length- 25"
  • Lens Colors- Red
  • Number of LED Tiers- 1 Stack

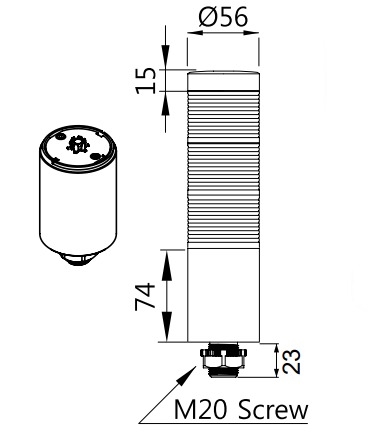

  • Dimensions (Tower Light Only)- 133 mm Height x 56 mm Diameter (5.24" x 2.2")
  • Brightness- 13 Lumens, 1040 mcd
  • Current Consumption- 0.033 Amps
  • Flash Rate- 80 times per minute
  • Vibration- 0.75mm at 10-55Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -40 C to 70 C (-40 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- 1007 UL / 22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets in any direction)
  • Approvals- CE, UL, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
