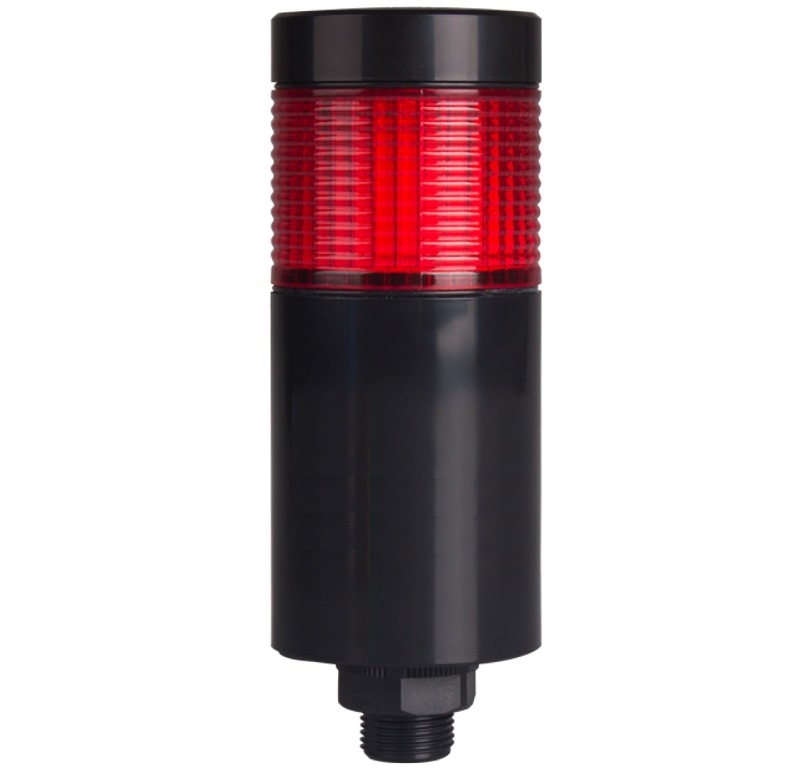

Menics PTE-SC-1FF-R-B 56 mm 1 Stack LED Tower Light, Red, Steady, Direct Mount, 90-240V

The Menics PTE-SC-1FF-R-B 1 stack LED tower light has a 56mm diameter and is rated for 90-240V. It has a red lens with a steady light and is prewired with 25" lead. This PTE series direct mount light has a modular system, making it easier to switch out parts if needed. It has prism cut lenses for optimal light distribution. The tower light itself comes pre-assembled. Perfect for applications in factory automation. Rated IP 65.

Specifications

• Light Operation- Steady
• Power Supply- 90-240V AC
• Mounting/Connection- Direct Mount / Lead Wires (see mounting accessories below)
• Lead Length- 25"
• Lens Colors- Red
• Number of LED Tiers- 1 Stack

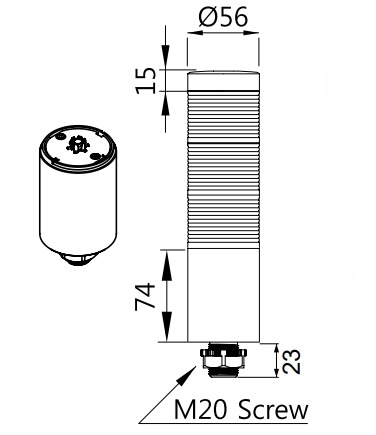

• Dimensions (Tower Light Only)- 133 mm Height x 56 mm Diameter (5.24" x 2.2")
• Brightness- 11 Lumens, 880 mcd
• Current Consumption- 0.017 Amps
• Vibration- 0.75mm at 10-55Hz
• Ambient Temperature- -15 C to 40 C (5 F to 104 F)
• Storage Temperature- -40 C to 70 C (-40 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- 1007 UL / 22 AWG
• IP Protection- IP 65 (Total protection from dust and water jets in any direction)
• Approvals- CE, UL, RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
