Menics MSGS-202-RG 140 mm 2 Stack Tower Light, Rotating, Red Green, 24V, w/ Sounds

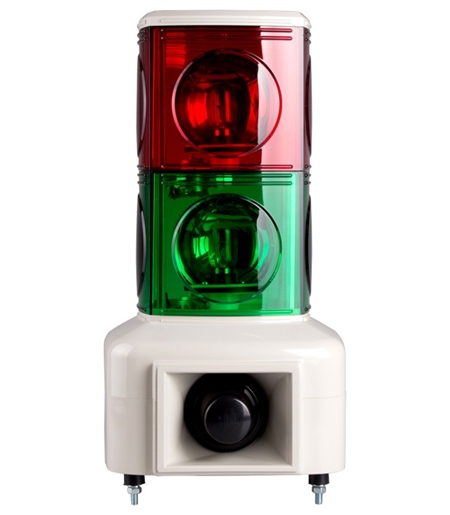

Menics MSGS-202-RG 2 Tier Tower Light, Red Green
Menics MSGS-202-RG 140 mm 2 Stack Tower Light, Rotating, Red Green, 24V, w/ Sounds



Alternative Views:


Price: $213.44
MFG P/N: MSGS-202-RG
MFG: Menics
Weight (lbs): 1

Quantity in Stock :5


Availability:
In Stock
Product Code: MSGS-202-RG
Qty:

Description


The Menics MSGS-202-RG 2 stack 24V incandescent square tower light has a 140 mm wide light with red & green lenses and rotating lights. The signal light itself comes pre-assembled. Greater visibility due to magnified lens and large reflector. Features 5 signal sounds. Sounds are selected depending on how it is wired (see wiring diagram). Perfect for large machines or areas that are sensitive to noise (toll gates). Belt driven design. Rated IP 20. Optional LED bulbs available.

Specifications

  • Mounting- Stud Mount or Wall Mount (See wall mount bracket below)
  • Light Operation- Rotating
  • Power Supply- 24V DC
  • Current Consumption- 1.3 Amps
  • Wattage- 25 Watts
  • Lens Colors- Red & Green
  • Number of Tiers- 2 Stack
  • Lens Material- Polycarbonate Resin
  • Dimensions- 350 mm Height x 190 mm Width (at base) x 180 mm Depth (at base) (13.77" x 7.48" x 7.09")
  • Sounds- Ambulance, Police, Siren, Home, For Elise
  • Rotation Rate- 150 rpm
  • Volume- 100 dB
  • Vibration- 0.75 mm at 10-55 Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45 to 85% Relative Humidity
  • Recommended Wire Size- VSF / 0.75mm2 (Power supply wire only)
  • IP Protection- IP 20 (Protected from objects 0.5" in diameter or greater)
  • Approvals- RoHS Compliant

MSGS-202-RG 24V 2 Tier Red & Green Square Tower Signal Light
