Menics MSGS-110-R 140 mm 1 Stack Tower Light, Rotating, Red, 110V, w/ Sounds

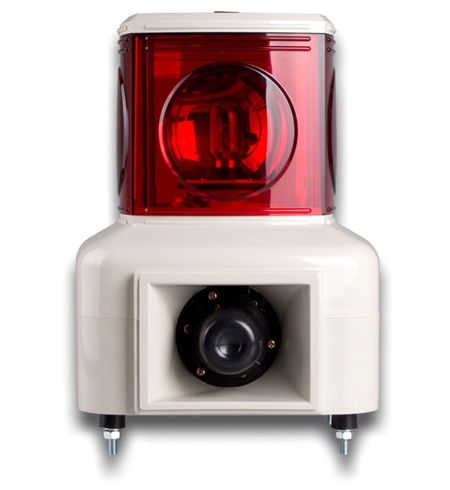

Menics MSGS-110-R 1 Tier Tower Light, Red
Menics MSGS-110-R 140 mm 1 Stack Tower Light, Rotating, Red, 110V, w/ Sounds

Alternative Views:
Price: $174.06
Note: Delivery: 2-5 Business Days
MFG P/N: MSGS-110-R
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :49


Availability: In Stock
Product Code: MSGS-110-R
Qty:

Description


The Menics MSGS-110-R 1 stack 110V incandescent square tower light has a 140 mm wide light with a red lens and a rotating light. The signal light itself comes pre-assembled. Greater visibility due to magnified lens and large reflector. Features 5 signal sounds. Sounds are selected depending on how it is wired (see wiring diagram). Perfect for large machines or areas that are sensitive to noise (toll gates). Belt driven design. Rated IP 20. Optional LED bulbs available.

Specifications

  • Mounting- Stud Mount or Wall Mount (See wall mount bracket below)
  • Light Operation- Rotating
  • Power Supply- 110V AC
  • Current Consumption- 0.4 Amps
  • Wattage- 25 Watts
  • Lens Colors- Red
  • Number of Tiers- 1 Stack
  • Lens Material- Polycarbonate Resin
  • Dimensions- 240 mm Height x 190 mm Width (at base) x 180 mm Depth (at base) (9.45" x 7.48" x 7.09")
  • Brightness- 20 Lumens, 1590 mcd
  • Sounds- Ambulance, Police, Siren, Home, For Elise
  • Rotation Rate- 150 rpm
  • Volume- 100 dB
  • Vibration- 0.75 mm at 10-55 Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45 to 85% Relative Humidity
  • Recommended Wire Size- VSF / 0.75mm2 (Power supply wire only)
  • IP Protection- IP 20 (Protected from objects 0.5" in diameter or greater)
  • Approvals- RoHS Compliant
