Menics MSGS-120-R 140 mm 1 Stack Tower Light, Rotating, Red, 220V, w/ Sounds

Menics MSGS-120-R 1 Tier Tower Light, Red
Menics MSGS-120-R 140 mm 1 Stack Tower Light, Rotating, Red, 220V, w/ Sounds

Alternative Views:
Price: $174.06
Note: Please call or email [email protected] for alternatives
MFG P/N: MSGS-120-R
MFG: Menics
Weight (lbs): 0.5

Quantity in Stock :(Out of Stock)


Availability: Out of Stock
Product Code: MSGS-120-R
Qty:

Description

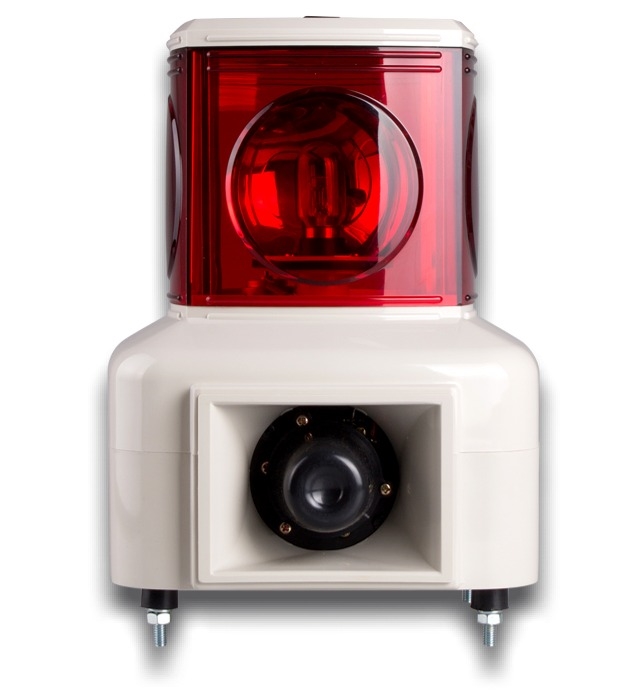

The Menics MSGS-120-R 1 stack 220V incandescent square tower light has a 140 mm wide light with a red lens and a rotating light. The signal light itself comes pre-assembled. Greater visibility due to magnified lens and large reflector. Features 5 signal sounds. Sounds are selected depending on how it is wired (see wiring diagram). Perfect for large machines or areas that are sensitive to noise (toll gates). Belt driven design. Rated IP 20. Optional LED bulbs available.

Specifications

  • Mounting- Stud Mount or Wall Mount (See wall mount bracket below)
  • Light Operation- Rotating
  • Power Supply- 220V AC
  • Current Consumption- 0.2 Amps
  • Wattage- 25 Watts
  • Lens Colors- Red
  • Number of Tiers- 1 Stack
  • Lens Material- Polycarbonate Resin
  • Dimensions- 240 mm Height x 190 mm Width (at base) x 180 mm Depth (at base) (9.45" x 7.48" x 7.09")
  • Brightness- 22 Lumens, 1750 mcd
  • Sounds- Ambulance, Police, Siren, Home, For Elise
  • Rotation Rate- 150 rpm
  • Volume- 100 dB
  • Vibration- 0.75 mm at 10-55 Hz
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -25 C to 70 C (-13 F to 158 F)
  • Ambient Humidity- 45 to 85% Relative Humidity
  • Recommended Wire Size- VSF / 0.75mm2 (Power supply wire only)
  • IP Protection- IP 20 (Protected from objects 0.5" in diameter or greater)
  • Approvals- RoHS Compliant
