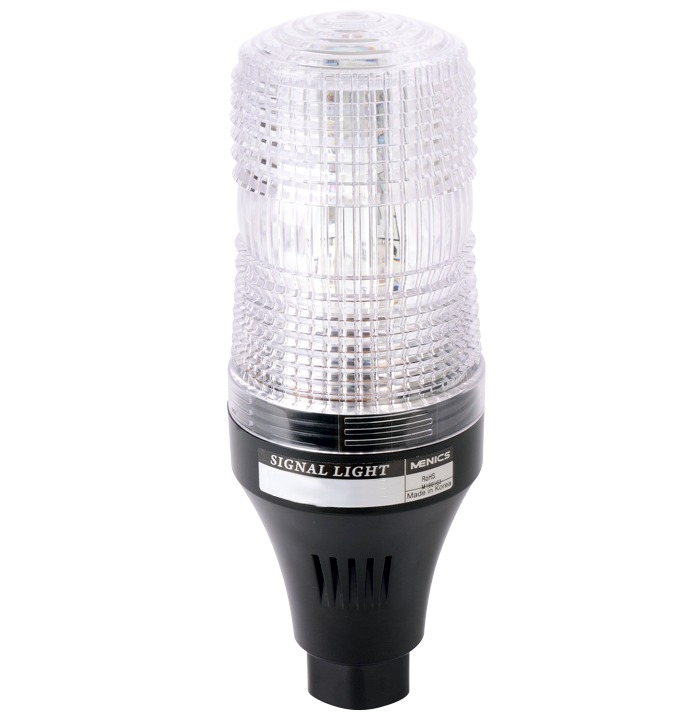

The Menics MS70M-PF00-RYG 70mm LED multi-color beacon signal light is 12-24V DC with a clear lens and a steady & flashing light. Red, yellow & green colors. Pole mount. Standard flash rate of 60-65 times per minute. Ideal for industrial applications and material handling. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Pole Mount (see mounting accessories below)
- Power Supply- 12-24V DC
- LED Colors- Red/Yellow/Green
- Lens Color- Clear
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Light Function- Steady & Flashing
- Lead Length- 350mm (13.78")
- Current Consumption- 0.22 Amps
- Buzzer- None (see below for version with buzzer alarm)
- Flash Rate- 65 times per minute (12V), 60 times per minute (24V)
- Dimensions- 188 mm Height x 68 mm Diameter (7.4" x 2.67")
- Connection- UL1007 / 22 AWG
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Insulation Resistance- 500V AC 50/60Hz for 1 min
- Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
