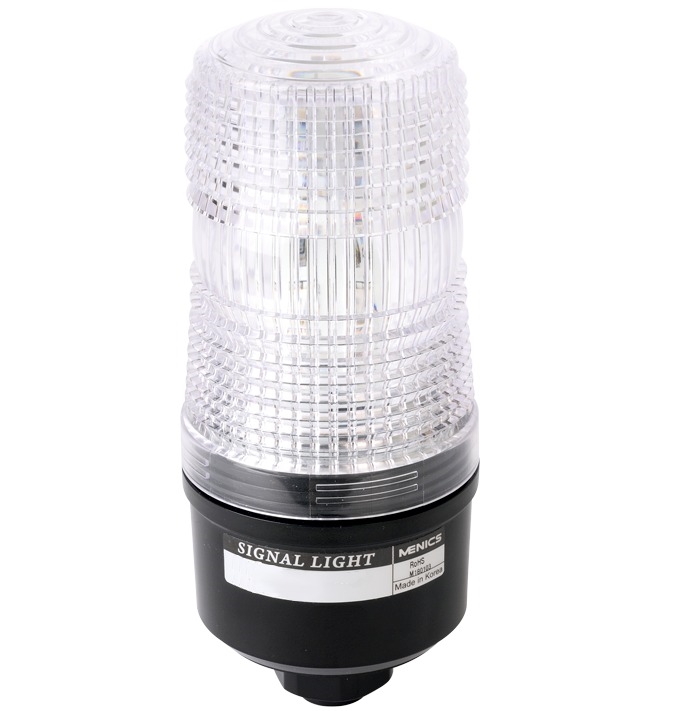

The Menics MS70M-MFFF-RYG 70mm LED multi-color beacon signal light is 110-220V AC with a clear lens and a steady & flashing light. Red, yellow & green colors. Direct mount. Flash rate of 70 times per minute. Perfect for industrial applications such as material handling. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Direct Mount (see mounting bracket for wall mounting below)
- Power Supply- 110-220V AC (50/60 Hz)
- LED Colors- Red/Yellow/Green
- Lens Color- Clear
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Light Function- Steady & Flashing
- Lead Length- 350mm (13.78")
- Current Consumption- 0.04-0.06 Amps
- Buzzer- None (see below for version with buzzer alarm)
- Flash Rate- 70 times per minute
- Dimensions- 163 mm Height x 68 mm Diameter (6.41" x 2.67")
- Connection- UL1007 / 22 AWG
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Insulation Resistance- 500V AC 50/60Hz for 1 min
- Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
|
|
|
 |
|
 |
|
