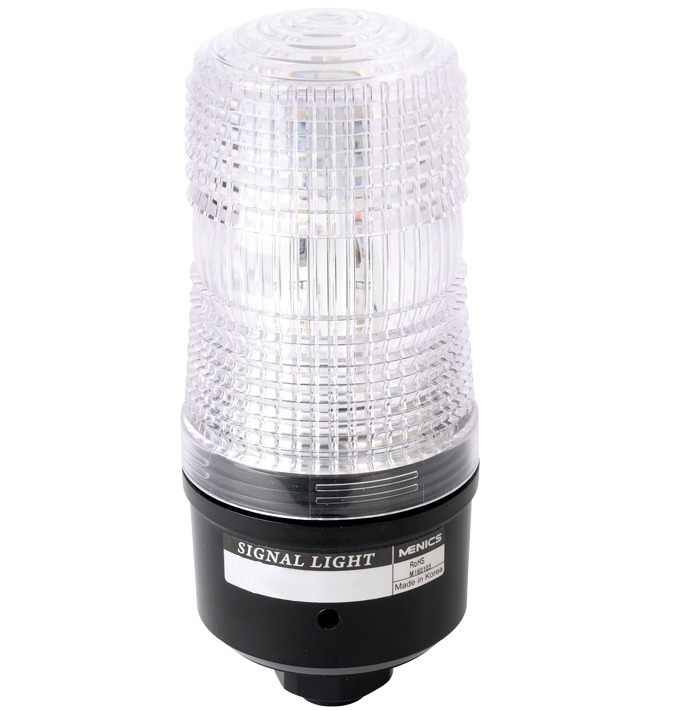

Menics MS70M-MBFF-RBG 70mm LED Beacon Light, 110-220V, Red Blue Green, Steady, Direct Mount, w/ Alarm, Clear Lens

The Menics MS70M-MBFF-RBG 70mm LED multi-color beacon signal light is 110-220V AC with a clear lens and steady light. Red, blue & green colors. Direct mount. Alarm adjustable between 50-75 dB. Perfect for industrial applications such as material handling. Rated IP 50. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Direct Mount (see mounting bracket for wall mounting below)
• Power Supply- 110-220V AC (50/60 Hz)
• LED Colors- Red/Blue/Green
• Lens Type- Clear
• Lens Material- Polycarbonate Resin
• Housing Material- ABS Plastic Resin
• Light Function- Steady w/ Alarm
• Lead Length- 350mm (13.78")
• Current Consumption- 0.05-0.06 Amps
• Alarm Volume- 50-75 decibels

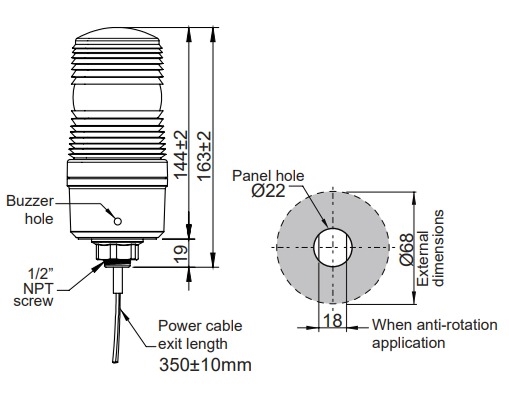

• Dimensions- 163 mm Height x 68 mm Diameter (6.41" x 2.67")
• Connection- UL1007 / 22 AWG
• Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Insulation Resistance- 500V AC 50/60Hz for 1 min
• Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
• IP Protection- IP 50 (Protection from harmful dust deposits)
• Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
