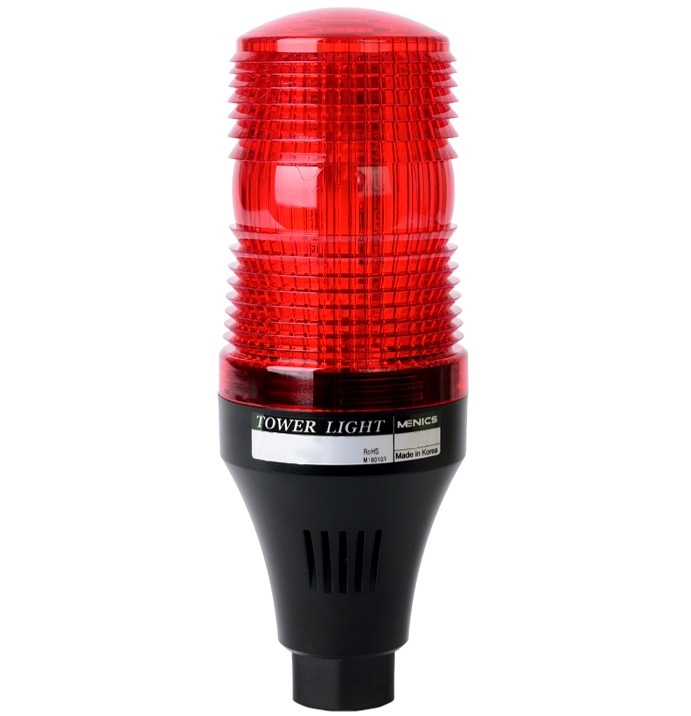

The Menics MS70LT-PBFF-R 70mm LED beacon light is 110-220V AC with a red lens and flashing light. Pole mounting. Standard flash rate of 75 times per minute. Features high intensity LED & adjustable alarm. Standard or emergency flash rate is selectable with the built in switch. Alarm volume can be set between 50-80 dB. Works well for material handling and other industrial applications. Rated IP 50. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Mounting- Pole Mounting (see mounting accessories below)
• Power Supply- 110-220V AC
• Lens Color- Red
• Lens Material- Polycarbonate Resin
• Housing Material- ABS Plastic Resin
• Light Function- Flashing w/ Alarm
• Lead Length- 350mm (13.78")
• Current Consumption- 0.05-0.06 Amps
• Alarm Volume- 50-80 decibels (see version without buzzer alarm below)
• Flash Rate- 75 times per minute (Standard), 3 Pattern 130 times per minute (Emergency)
• Brightness- 31.9-32.5 Lumens (2550-2600 mcd)

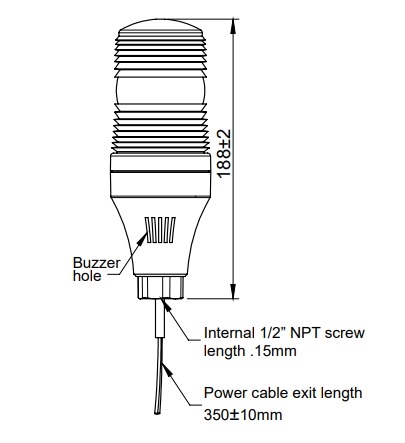

• Dimensions- 188 mm Height x 68 mm Diameter (7.4" x 2.67")
• Connection- UL2464 / 18 AWG, AWM, 2C, 300V
• Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Insulation Resistance- 500V AC 50/60Hz for 1 min
• Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
• IP Protection- IP 50 (Protection from harmful dust deposits)
• Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart

70mm 110-220V Red Pole Mount Light With Alarm Menics MS70LT-PBFF-R
