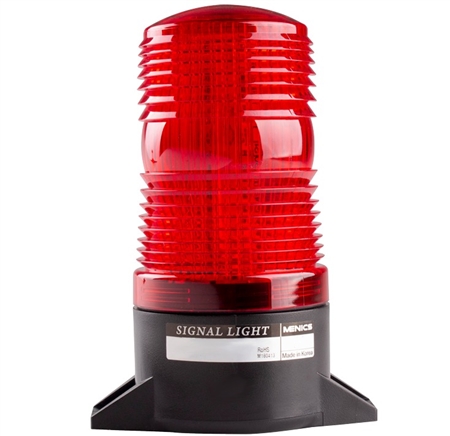

The Menics MS70LT-GFFF-R 70mm LED beacon light is 110-220V AC with a red lens and flashing light. Surface mount. Standard flash rate of 75 times per minute. Features high intensity LED. Flash rates are selectable with the built in switch. Ideal for forklifts, material handling, and other industrial applications. Rated IP 65.
Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.
Specifications
- Mounting- Surface Mount (see mounting bracket for wall mounting below)
- Power Supply- 110-220V AC
- Lens Color- Red
- Lens Material- Polycarbonate Resin
- Housing Material- ABS Plastic Resin
- Light Function- Flashing
- Lead Length- 350mm (13.78")
- Current Consumption- 0.04-0.05 Amps
- Buzzer- None (see below for version with buzzer alarm)
- Flash Rate- 75 times per minute (Standard), 3 Pattern 130 times per minute (Emergency)
- Brightness- 31.9-32.5 Lumens (2550-2600 mcd)
- Dimensions- 145 mm Height x 68 mm Diameter (5.7" x 2.67")

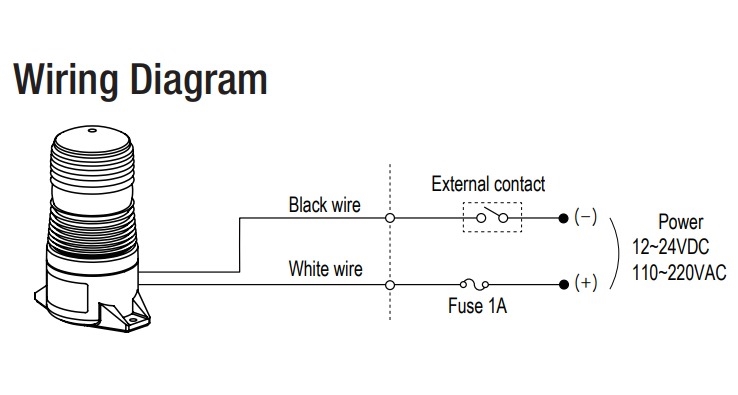

- Connection- UL2464 / 18 AWG, AWM, 2C, 300V
- Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
- Storage Temperature- -20 C to 70 C (-4 F to 158 F)
- Ambient Humidity- 45-85% Relative Humidity
- Insulation Resistance- 500V AC 50/60Hz for 1 min
- Vibration- 10 to 55Hz (cycle 1 minute) Amplitude 0.75mm, X, Y, Z 1 hour in each direction
- IP Protection- IP 65 (Total protection from dust and water jets from any direction)
- Approvals- RoHS
Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
Menics MS70LT-GFFF-R 70mm 110-220V Red Surface Mount Beacon Light
|
|
|
 |
|
 |
|
