Menics MS56L-F01-Y 56mm LED Beacon Light, 12V, Yellow, Steady/Flash

Menics 56mm LED Beacon Light, 12V, Yellow
Menics MS56L-F01-Y 56mm LED Beacon Light, 12V, Yellow, Steady/Flash

Alternative Views:

Our Price: $37.17
MFG P/N: MS56L-F01-Y
MFG: Menics
Weight (lbs): 0.15

Quantity in Stock :36

In Stock
Product Code: MS56L-F01-Y

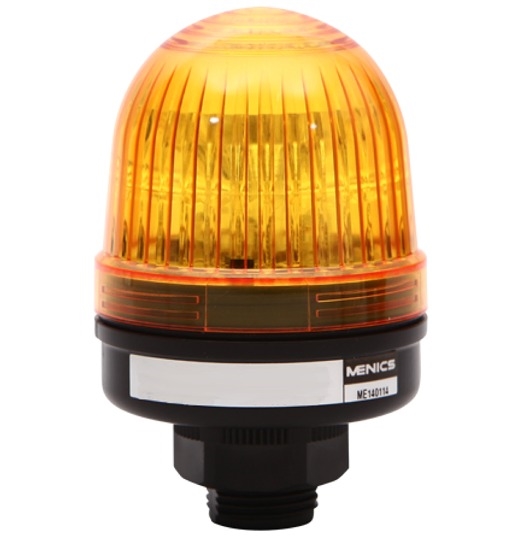

The Menics MS56L-F01-Y 56mm LED beacon light is 12V AC/DC with a yellow lens and steady or flashing light. Direct mount with a lead wire connection. Flash rate of 110/min (AC) or 60/min (DC). A switch inside allows you to choose between steady or flashing mode. This compact size beacon light is perfect for electrical control panels due to the reflector that ensures a bright light. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.


  • Power Supply- 12V AC/DC
  • Mounting- Wall Mounted (see mounting bracket below)
  • Lens Color- Yellow
  • Lens Material- Polycarbonate Resin
  • Housing Material- ABS Plastic Resin
  • Lead Length- 800mm (31.5")
  • Light Style- Steady & Flashing
  • Current Consumption- 0.1 Amps
  • Brightness- 11 Lumens (880 mcd)
  • Flash Rate- 110 times per minute (AC), 60 times per minute (DC)
  • Buzzer- None
  • Dimensions- 86 mm Height x 56 mm Diameter (3.4" x 2.2")
  • Vibration- 15~55 Hz; xyz/60min (70m/s2, 7G)
  • Insulation Resistance- 100 MOhm min (500VDC mega)
  • Ambient Temperature- -15 C to 40 C (5 F to 104 F)
  • Storage Temperature- -20 C to 70 C (-4 F to 158 F)
  • Ambient Humidity- 45-85% Relative Humidity
  • Recommended Wire Size- UL1007/22 AWG
  • IP Protection- IP 65 (Total protection from dust and water jets from any direction)
  • Approvals- RoHS

Menics MS56L-F01-Y 56mm 12V Yellow LED Beacon Light

Additional Product Information

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
