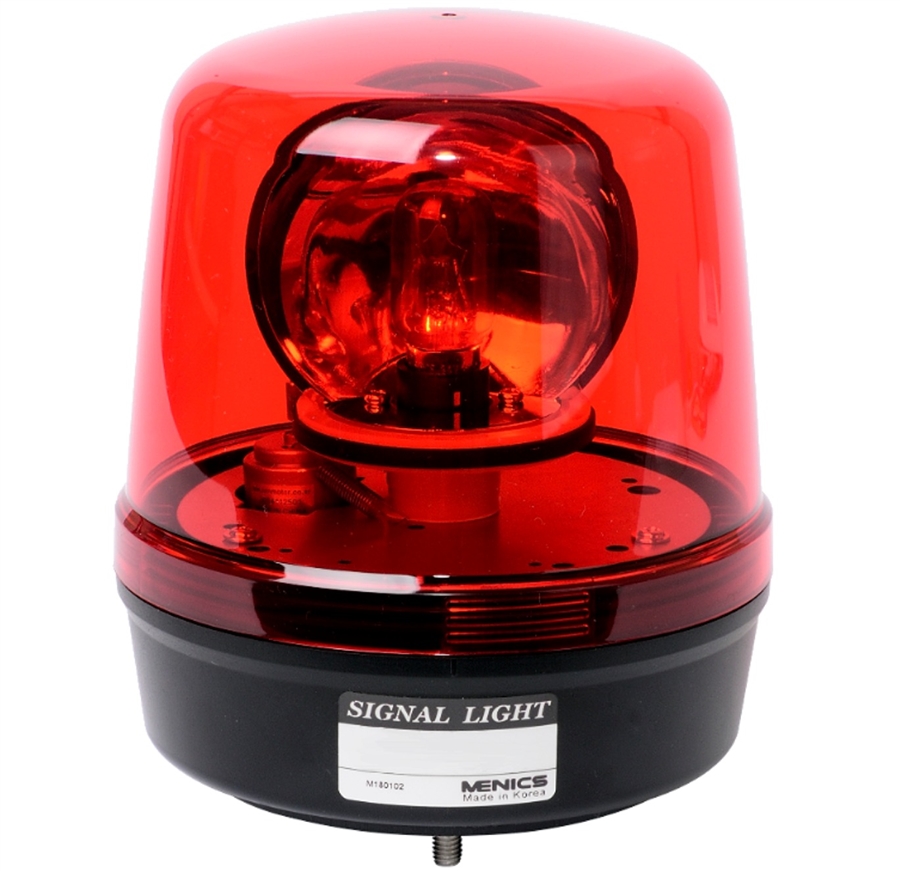

Menics MS135B-B20-R 135mm Beacon Light, 220V, Red, Rotating w/ Alarm

The Menics MS135B-B20-R 135mm beacon warning light is 220V AC with a red lens and incandescent 25W light. Reflector rotation rate of 150 rpm, which produces a strong flashing effect. Has 90 dB intermittent alarm. Lens and housing are able to withstand the elements. Light is designed to be seen from a distance. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Light Type- Rotating w/ Alarm
• Mounting- Stud mounted or Pole mounted (see mounting accessories below)
• Power Supply- 220V AC
• Lens Color- Red
• Lead Length- 500mm (19.7")

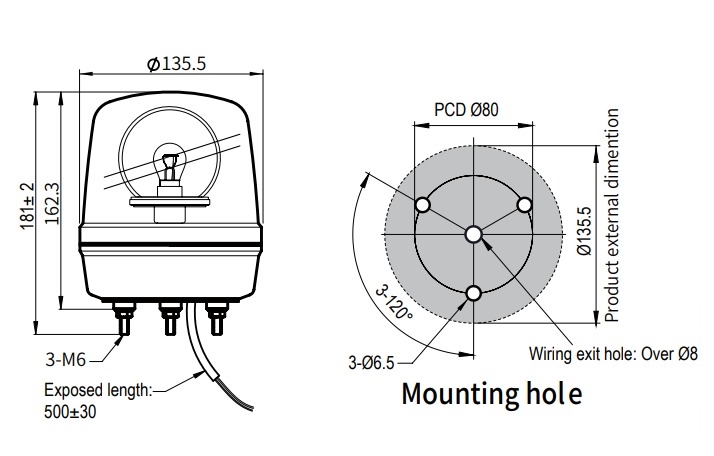

• Dimensions- 181 mm Height x 135 mm Diameter (7.13" x 5.31")
• Current Consumption- 0.11 Amps
• Rotation Rate- 150 rotations per minute
• Alarm Volume- 90 decibels @ 1 Meter (see model without buzzer alarm below)
• Ambient Temperature- -15 C to 50 C (5 F to 122 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Dielectric Strength- 1 Min @ 1000VAC 50/60Hz
• Insulation Resistance- 100 MOhm or more
• Vibration- 10-55Hz (1 min.cycle) Double amplitude 0.75mm X, Y, Z
• Recommended Wire Size- UL2464 / 22 AWG
• Bulb Life Expectancy- 1000 hrs
• IP Protection- IP 65 (Total protection from dust and water jets from any direction)
• Approvals- RoHS

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
