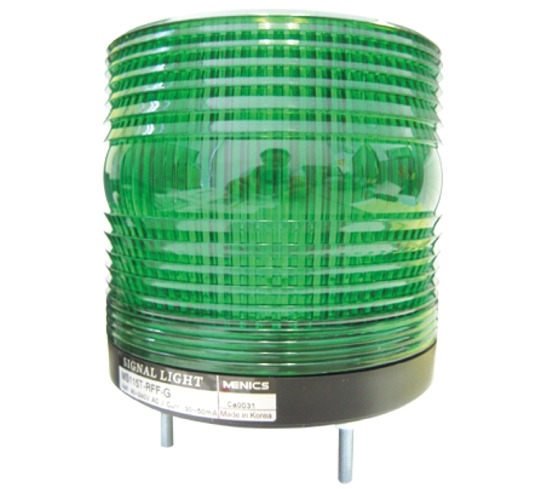

Menics MS115T-R00-G 115mm LED Beacon Light, 12-24V, Green, Flashing / Rotating

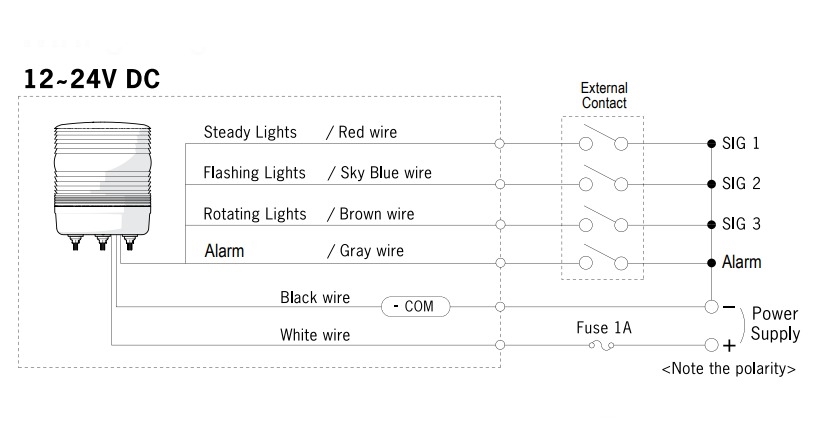

The Menics MS115T-R00-G 115mm beacon light is 12-24V AC/DC with a green lens, and steady/flashing/rotating LED light. The prism cut PC plastic lens provides a wide light distribution. Made to be seen from a distance. Ideal for large construction and industrial equipment. Steady or flashing mode depends on the wiring (see wiring diagram). Two flash rates selected by DIP switch. Rotation rate adjusted using Phillips head screwdriver. Rated IP 65. Note: See the link to our accessory chart below the description to find out which mounting accessories are compatible with each other.

Specifications

• Light Type- Steady / Flashing / Rotating
• Power Supply- 12-24V AC/DC
• Lens Color- Green
• Lens Material- Polycarbonate Resin

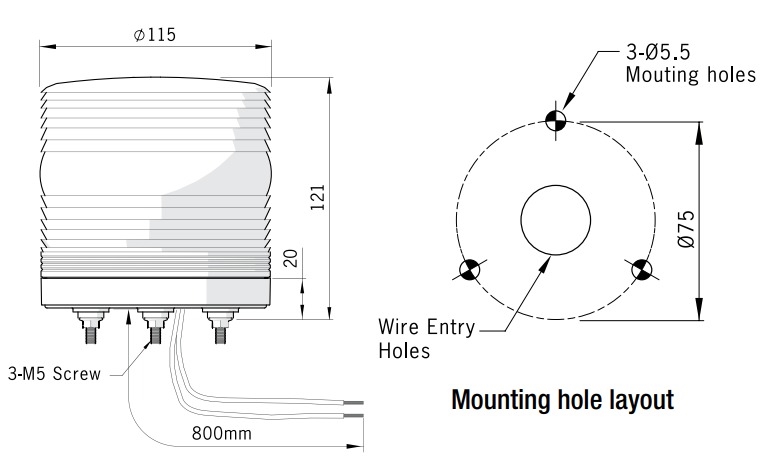

• Dimensions- 121 mm Height x 115 mm Diameter (4.76" x 4.52")
• Lead Length- 800mm (31.5")
• Current Consumption- 0.25 Amps

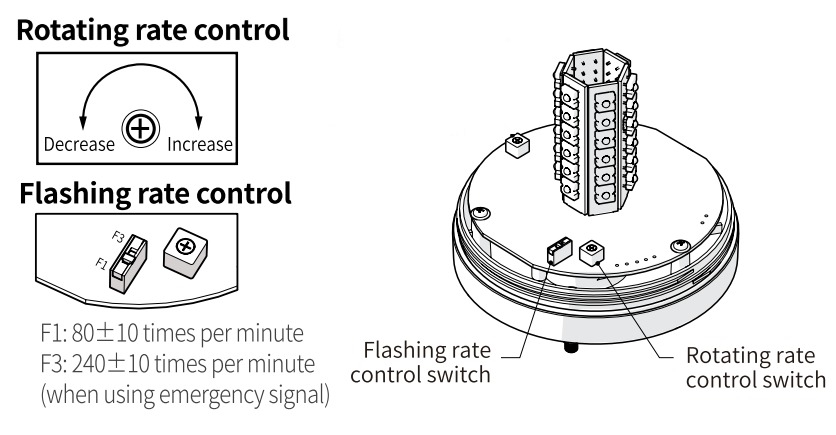

• Flash Rate- Adjustable (80 or 240 flashes per minute)
• Rotation Rate- Clockwise 60-300 rpm
• Vibration- 0.75mm @ 10-55Hz
• Ambient Temperature- -20 C to 40 C (-4 F to 104 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Recommended Wire Size- UL1007 / 22 AWG
• IP Protection- IP 65 (Total protection from dust and water jets from any direction)
• Approvals- RoHS, UL

Find out which mounting accessories you need with our Menics Signal Light Mounting Accessory Chart
