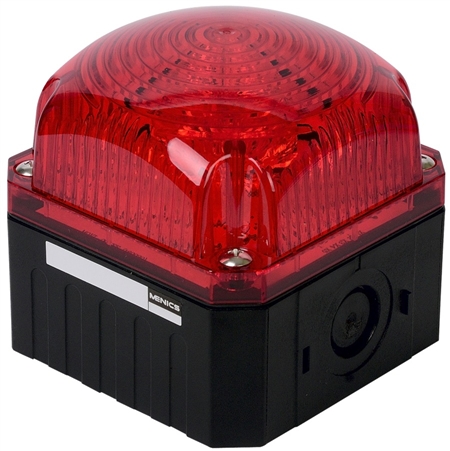

Menics MQVL-00-R 95mm Cube Beacon Light, 12-24V, Red

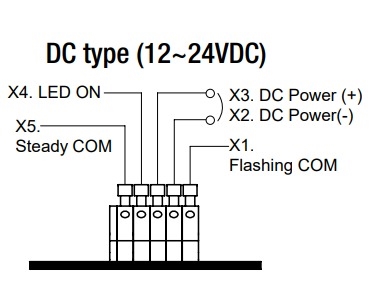

The Menics MQVL-00-R 95 mm cube style beacon light is 12-24V DC with a red lens and a steady & flashing LED light. This signal light is stackable with other MQV series lights as well as MQV series buzzer alarms. The prism cut lens and reflectors provide an even light distribution. Steady or Flashing mode is dependent on the wiring connection. Rated IP 65.

Specifications

• Mounting- Direct mount - Screw Type (M6, 2ea)
• Light Type- LED Steady/Flashing
• Power Supply- 12-24V DC
• Lens Color- Red
• Lens Material- Polycarbonate
• Housing Material- Polyamide 6
• Dimensions- 94 mm Height x 95 mm Width x 95 mm Depth (3.7" x 3.74" x 3.74")
• Power Cable Insertion- Through the bottom of the main housing with a max cable diameter of 7 mm or 2 places outside the main housing using cable glands
• Current Consumption- 0.21 Amps
• Flash Rate- 80 times per minute
• Vibration- 0.75 mm @ 10-55Hz
• Insulation Resistance- Over 100 M Ohm min. (500VDC mega between terminals & case)
• Withstand Voltage- 500V AC 50/60 Hz 1 minute (between terminals & case)
• Ambient Temperature- -20 C to 50 C (-4 F to 122 F)
• Storage Temperature- -20 C to 70 C (-4 F to 158 F)
• Ambient Humidity- 45-85% Relative Humidity
• Connection- UL1007 / AWG 22
• IP Protection- IP 65 (Total protection from dust and water jets in any direction)
• Approvals- RoHS
