Overview
The

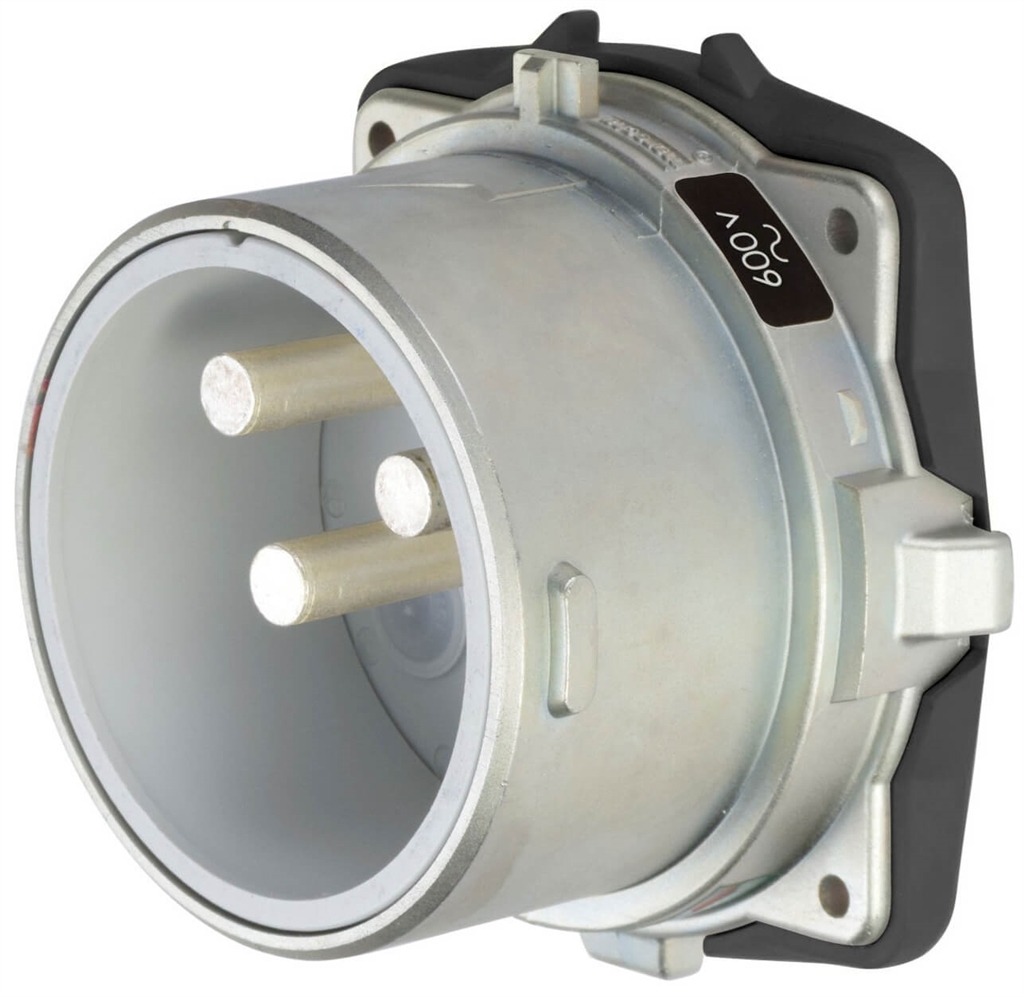

Meltric 37-28142 DS200 is a 200 Amp male inlet rated for 600V AC applications. Designed for demanding industrial environments, it features 2 Poles + Ground with a wiring capacity of 4-4/0 AWG. The aluminum housing is corrosion treated for long-term durability and environmental protection.200AType 4XIP66/IP67
This DS Series inlet is engineered to improve operator safety by reducing the risk of arc flash while maintaining secure high-current electrical connections in harsh environments.
⚡ Industrial Safety & Reliability
Arc Flash Reduction: Designed to improve operator safety during connection and disconnection.
Corrosion Resistance: Treated aluminum housing withstands harsh industrial conditions.
Watertight Protection: Type 4X and IP66/IP67 sealing protects against water and dust ingress.
Key Features
- 200 Amp rated current for heavy-duty industrial power applications
- 600V AC operation with 2 Pole + Ground configuration
- Silver-nickel contacts for superior conductivity and durability
- 4-4/0 AWG wiring capacity supports large industrial conductors
- IK10 impact rating for high mechanical protection
- UL and CSA listed for industrial compliance
- Heavy-duty screw terminals for secure wire termination
✅ Why Choose Meltric DS Series?
The DS Series combines
high-current switching capability, enhanced personnel safety, and long-lasting industrial durability in a compact heavy-duty connector system.
Applications
The 37-28142 DS200 male inlet is ideal for industrial environments requiring secure high-current power connections:
- Manufacturing facilities
- Heavy equipment power connections
- Industrial machinery disconnect systems
- Processing plants
- Water and wastewater facilities
- Outdoor industrial power distribution
- Motor and branch circuit disconnect applications
Silver-Nickel Contact Advantages
The DS200 series utilizes
85% silver / 15% nickel contacts to create a highly conductive and durable electrical connection point.
- Excellent conductivity for high-current operation
- Resists oxidation and corrosion buildup
- Maintains low contact resistance over time
- Handles repeated connection and disconnection cycles
- Improves long-term electrical reliability
⚠️ Important Information
Ground shipping only.
Image shown is for reference only; actual product appearance may vary.
Must be used with the compatible Meltric female receptacle for proper operation and safety.
Performance Benefits
- Improves electrical safety in industrial applications
- Reduces downtime with rugged long-life construction
- Protects against moisture, dust, and harsh environments
- Supports demanding high-current equipment connections
- Helps minimize maintenance and replacement costs
🔧 Built for Harsh Environments
Designed for industrial applications where moisture resistance, corrosion protection, and heavy-duty performance are critical.
