Kacon HRB-PS50IR24V 30mm Intermittent Buzzer, 24V AC/DC

30 mm Intermittent Buzzer, 24V AC/DC
Kacon HRB-PS50IR24V 30 mm Intermittent Buzzer, 24V AC/DC



Alternative Views:


Price: $10.24
MFG P/N: HRB-PS50IR24V
MFG: Kacon
Weight (lbs): 0.1

Quantity in Stock :33


Availability:
In Stock
Product Code: HRB-PS50IR24V
Qty:

Description


The Kacon HRB-PS50IR24V is a panel mount buzzer made for 30 mm mounting holes. It has an intermittent 80dB sound and is rated for 24V AC/DC. Features red 50,000 hour light. Rated IP 40.

Specifications

  • Dimensions- 45 mm Width x 45 mm Height x 61 mm Depth (1.77" x 1.77" x 2.4")
  • Sound Type- Intermittent Piezo Buzzer
  • Voltage- 24V AC/DC
  • Light Color- Red
  • Light Lifespan- 50,000 Hours

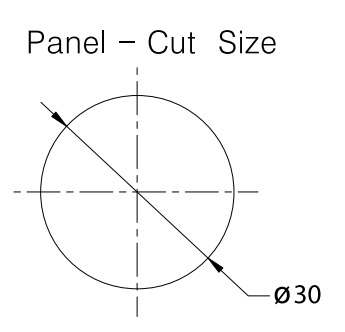

  • Inlet Diameter- 30 mm
  • Current Consumption- Electrical DC: 0.025 Amps, Mechanical AC: 4VA
  • Max Output- 1W (PEAK)
  • Volume- 80 Decibels
  • Dielectric Strength- Charged and non charged parts : 1,000VAC 1Min
  • Ambient Temperature- -10 C to 55 C (14 F to 131 F)
  • Ambient Humidity- 35-85% Relative Humidity
  • Driving Torque- 0.8N·m (8.16kgf·cm)
  • Recommended Wire- 14-16 AWG Copper Wire
  • Protection Rating- IP 40 (Protection from objects greater than 1 mm (0.04") in diameter)
  • Approvals- CE

Kacon 24V AC/DC 30 mm Panel Mount Piezo Buzzer
