Kacon KSP-42T 66mm Buzzer, 12/24V DC

Alternative Views:

Price: $78.64

Note: Delivery: 2-5 Business Days
MFG P/N: KSP-42T
MFG: Kacon
Weight (lbs): 0.2

Quantity in Stock :98

Availability: In Stock
Product Code: KSP-42T

Qty:

Description

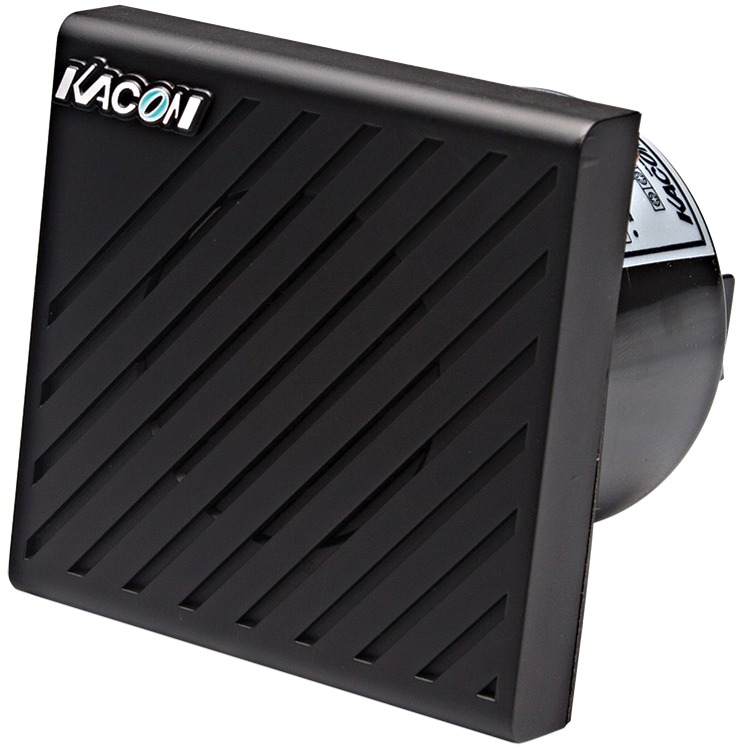

The Kacon KSP-42T is a buzzer with a square housing, made for 66mm mounting holes. It features four 85 dB sound pattern types and is rated for 12/24V DC. Pattern types are fast, slow, high, and low. Sound pattern is selected based on the wiring. Rated IP 65. Note: The SIG COM of the signal input and the COM of the power supply have different circuits, and should not be connected to each other.

Specifications

Dimensions- 80mm W x 80mm H x 73mm D
Sound Mode- Sound Type: Fast (K1), Slow (K2), High (K3), Low (K4)
Voltage- 12/24V DC
Inlet Diameter- 66mm
Current Consumption- 5W max
Max Output- 1W (PEAK)
Volume- 85 dB
Driving Torque- 0.8N·m (8.16kgf·cm)
Recommended Wire- 14-16 AWG Copper Wire
Protection Rating- IP 65
Approvals- CE
