The ILME MQDS-16IO32 kit is size 77.27 with 16 pole male & female tool-less spring terminal inserts, a metal side entry hood and a metal double lever base. The hood thread is size M32. Insert dimensions 77.5 x 27 mm. Rated IP 66. The MQDS-16IO32 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

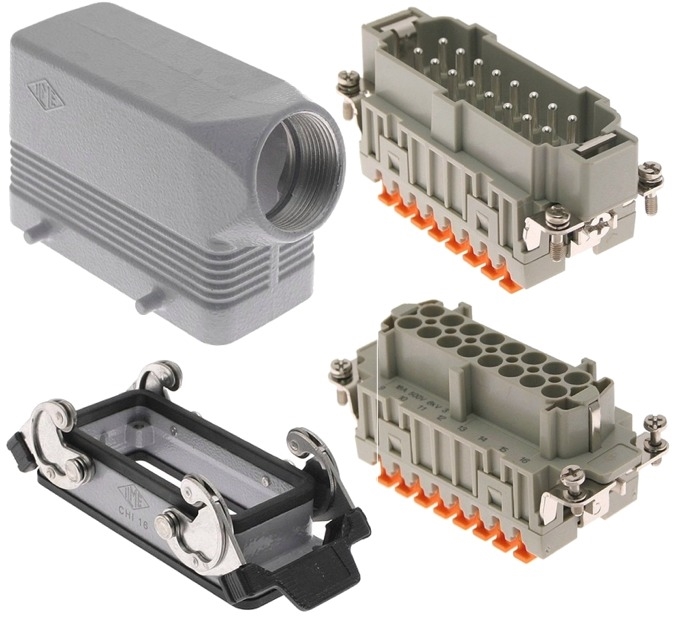

Included Components
Male Insert:
CSHM-16
Female Insert: CSHF-16
Base: CHI-16
Hood: MHO-16.32
Specifications
- Pin Count- 16
- ILME Series- KIT
- Housing Type- Standard
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Termination- Spring
- Enclosure Type- Double Lever
- Mounting Style- Panel Mount
- Hood Entry- Side
- Hood Thread- M32
- Pegs- 4 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- UL, CUL
ILME 77.27 16 Pin Insert 2 Lever Base M32 Hood Kit MQDS-16IO32
|
|
|
 |
|
 |
|
