The ILME MNLS-16IO32 kit is size 77.27 with 16 pole male & female screw terminal inserts, a metal side entry hood and a metal single lever base. The hood thread is size M32. Insert dimensions 77.5 x 27 mm. Rated IP 66. The MNLS-16IO32 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.
Included Components

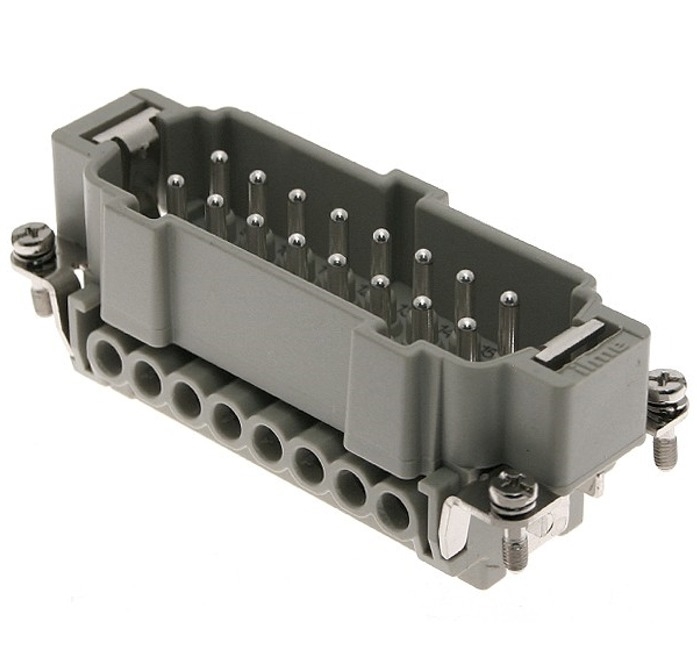

Male Insert:
CNEM-16T

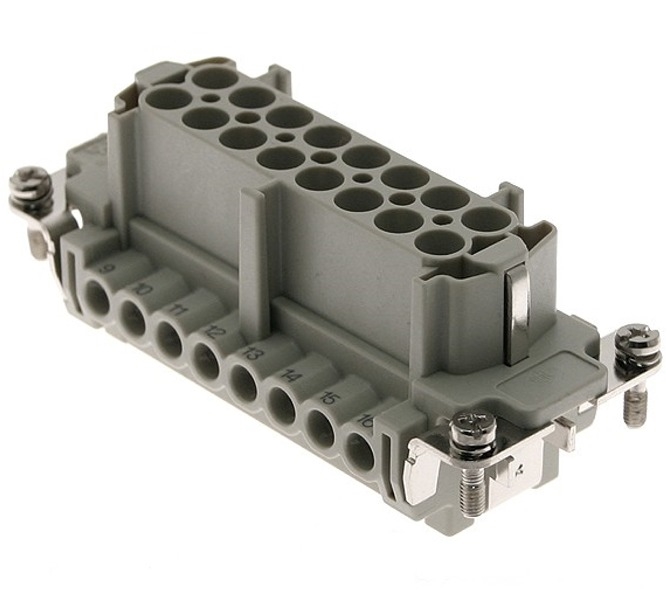

Female Insert: CNEF-16T

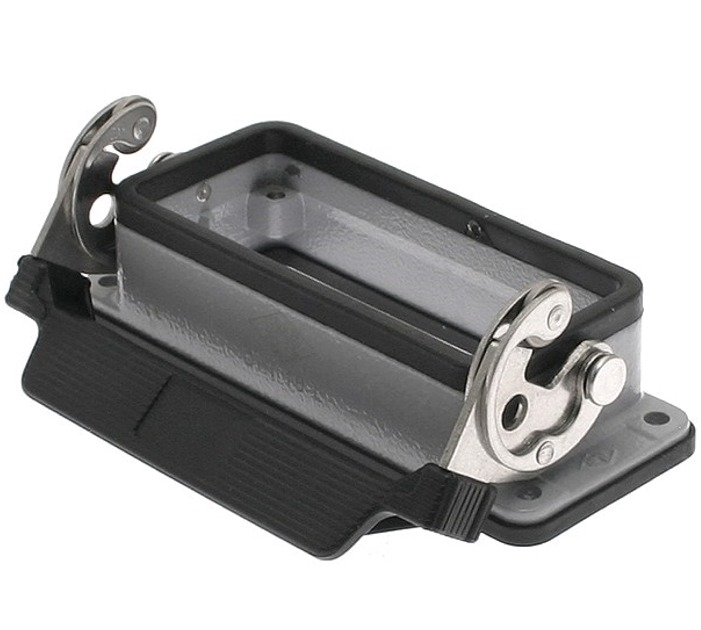

Base: CHI-16L

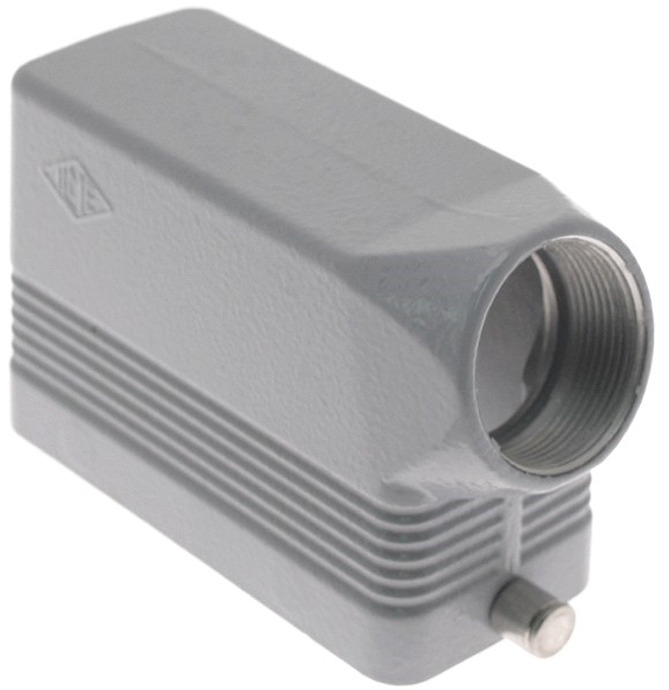

Hood: MHO-16L32
Specifications
- Pin Count- 16
- ILME Series- KIT
- Housing Type- Standard
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Termination- Screw
- Enclosure Type- Single Lever
- Mounting Style- Panel Mount
- Hood Entry- Side
- Hood Thread- M32
- Pegs- 2 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- UL, CUL
