The ILME TQLS-16IOA34 kit is size 77.27 with 16 pole male & female tool-less spring terminal inserts, a metal side entry high construction hood and a metal single lever base. The hood thread is size 3/4" NPT. Insert dimensions 77.5 x 27 mm. Rated IP 66. The TQLS-16IOA34 features a clamping force that is constant due to the stainless steel locking system. It has a life expectancy of over 500 cycles. These connector kits can be used in many different types of applications, including automation, food processing, robotics, transportation, injection molding and material handling.

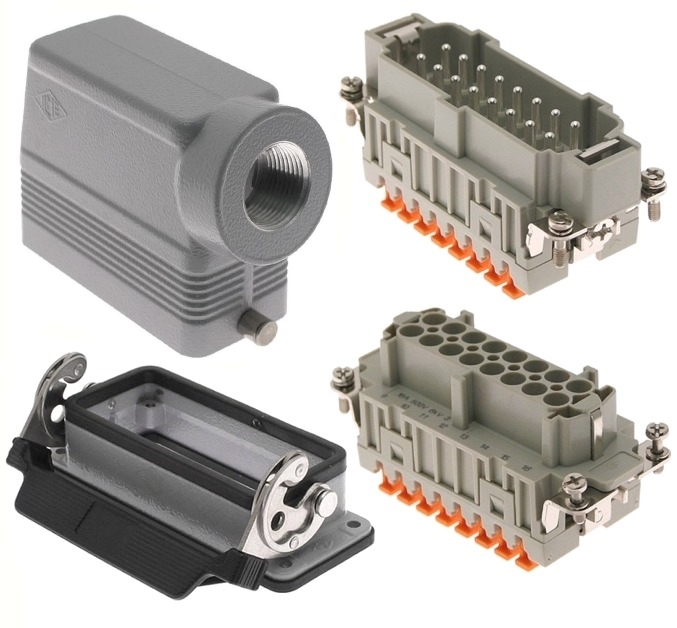

Included Components

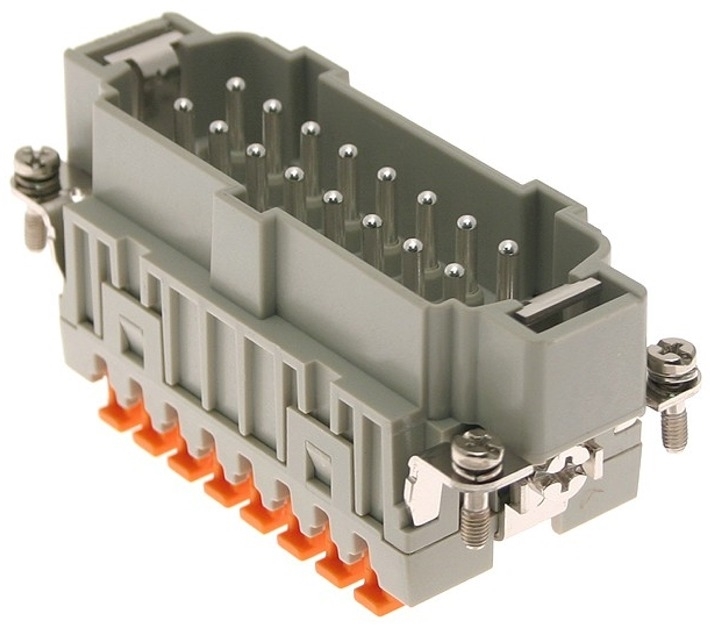

Male Insert:
CSHM-16

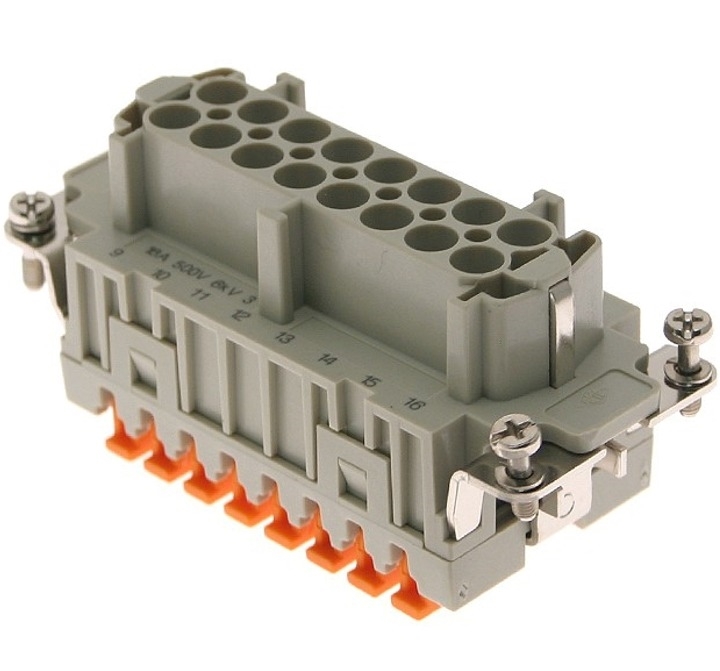

Female Insert: CSHF-16

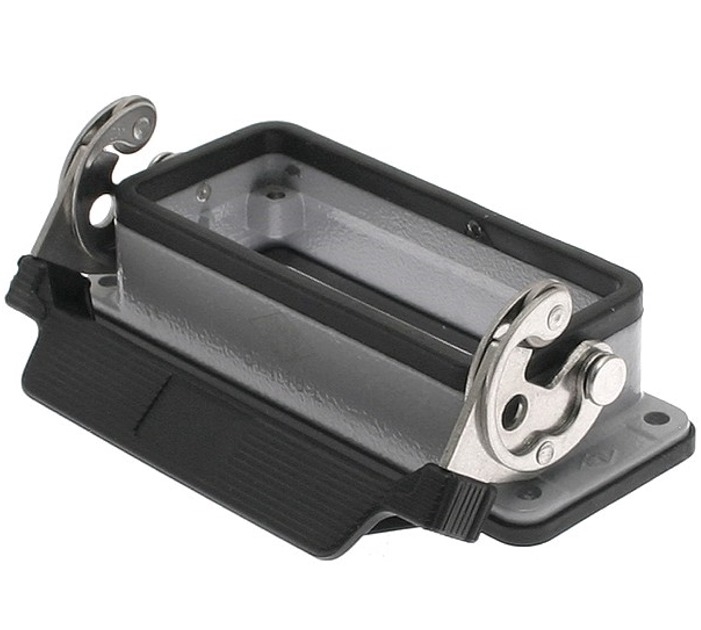

Base: CHI-16L

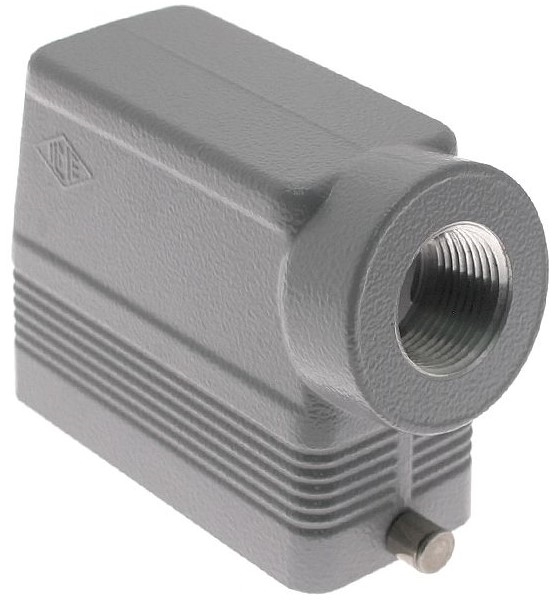

Hood: CAOT-16.5L
Specifications
- Pin Count- 16
- ILME Series- KIT
- Housing Type- Standard, High Construction
- Insert Dimension- 77.27
- Enclosure Dimension- 77.27
- Termination- Spring
- Enclosure Type- Single Lever
- Mounting Style- Panel Mount
- Hood Entry- Side
- Hood Thread- 3/4" NPT
- Pegs- 2 Pegs
- Gasket- Yes
- Number of Entries- 1
- Temperature Range- -40 C to 125 C (-40 F to 257 F)
- Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)
- Insert Dimensions- 77.5 x 27 mm (3.05" x 1.06")
- Approvals- UL, CUL
|
|
|
 |
|
 |
|
