ILME CZAPT-25.5L IL-BRID Surface Mount Housing, Size 66.16, Single Lever, 3/4" NPT

Price: $36.83

Note: Delivery: 2-5 Business Days
MFG P/N: CZAPT-25.5L
MFG: ILME
Weight (lbs): 0.5

Quantity in Stock :1

Availability: In Stock
Product Code: CZAPT-25.5L

Qty:

Description

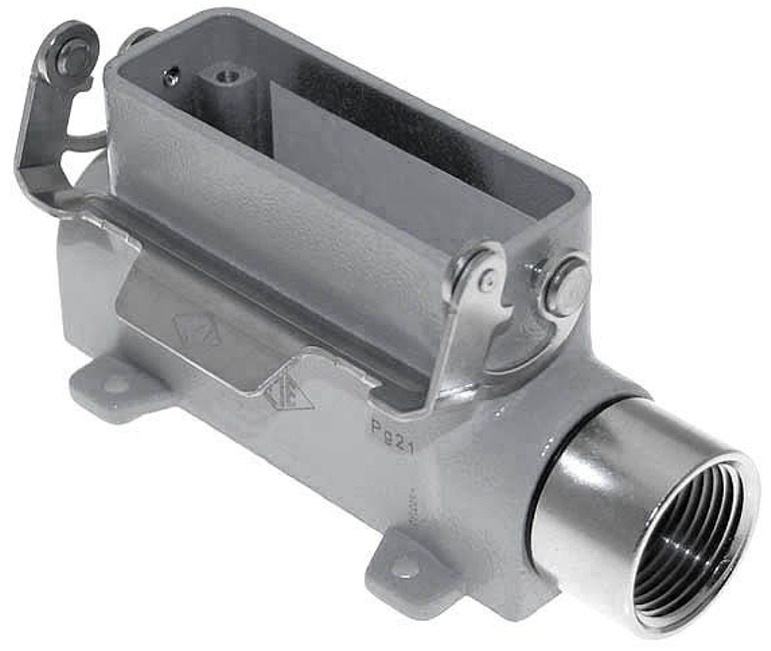

The ILME CZAPT-25.5L IL-BRID surface mount standard housing is size 66.16 and features a single lever with a 3/4" NPT cable entry. The body is epoxy coated die cast aluminum with a thermoplastic handle & stainless steel hook. Rated IP 66 when attached and locked down. The clamping force supplied by the CZAPT-25.5L is constant due to the stainless steel locking system. The thermoplastic handle reduces wear on the hood pins.

Specifications

Body- Die Cast Aluminum
Lever- Stainless Steel
ILME Series- CZ - IL-BRID
Insert Dimension- 66.16
Enclosure Dimension- 66.16
Housing Type- Metallic, Standard
Enclosure Type- 1 Lever
Mounting Style- Surface Mount
Temperature Range- -40 C to 125 C (-40 F to 257 F)
Cable Entry- Side
Thread Size- 3/4" NPT
Ingress Protection- IP 66 (Total protection from dust and high pressure water jets from any direction)

Compatible Inserts

Series	Part Number
CDD	CDDF-38 CDDM-38
CDA	CDAF-16, CDAF-16X CDAM-16, CDAM-16X
CDC	CDCF-16 CDCM-16

66.16 3/4" NPT Cable Entry ILME Surface Mount Base CZAPT-25.5L
