ILME CZAP-25LS221 IL-BRID Surface Mount Housing, Size 66.16, Lever & Cover, PG 21

CZAP-25LS221
ILME CZAP-25LS221 IL-BRID Surface Mount Housing, Size 66.16, Lever & Cover, PG 21

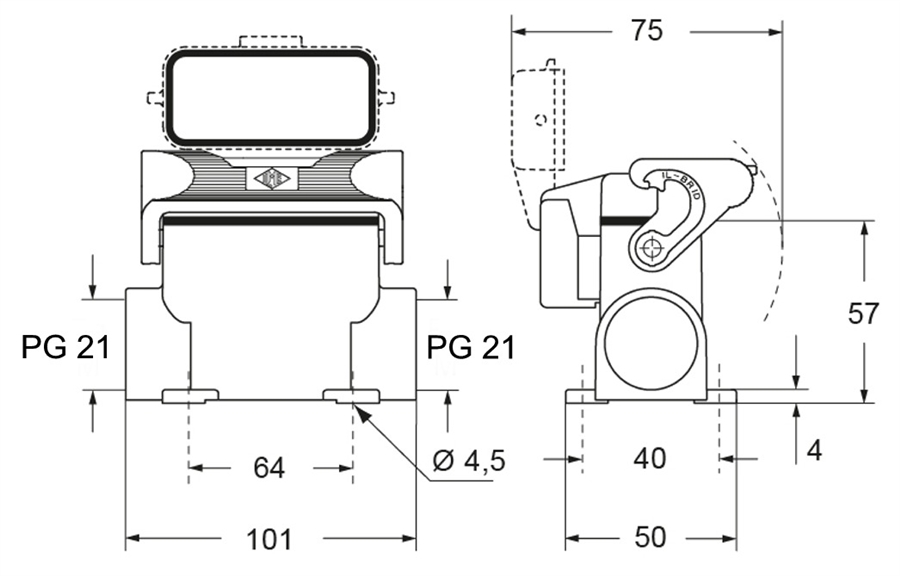

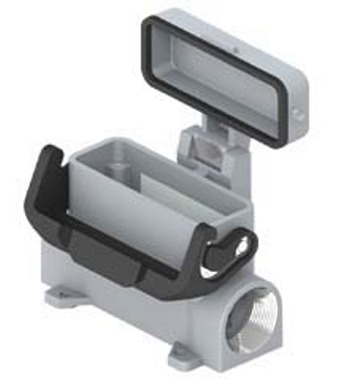

Alternative Views:
Price: $54.26
Note: Delivery: 2-5 Business Days
MFG P/N: CZAP-25LS221
MFG: ILME
Weight (lbs): 0.5

Quantity in Stock :27


Availability: In Stock
Product Code: CZAP-25LS221
Qty:


Description


The ILME CZAP-25LS221 IL-BRID surface mount standard housing is size 66.16 and features a single lever & cover with two PG 21 cable entries. The body is epoxy coated die cast aluminum with a thermoplastic handle & stainless steel hook. Rated IP 65 when attached and locked down. The clamping force supplied by the CZAP-25LS221 is constant due to the stainless steel locking system. The thermoplastic handle reduces wear on the cover pins.

Specifications

  • Body- Epoxy Coated Die Cast Aluminum
  • Lever- Thermoplastic Handle w/ Stainless Steel Hook
  • ILME Series- CZ - IL-BRID
  • Insert Dimension- 66.16
  • Enclosure Dimension- 66.16
  • Housing Type- Metallic, Standard
  • Enclosure Type- 1 Lever
  • Mounting Style- Surface Mount
  • Temperature Range- -40 C to 125 C (-40 F to 257 F)
  • Hood Entry- Side
  • Hood Thread- PG 21
  • Number of Entries- 2
  • Ingress Protection- IP 65 (Total protection from dust and low pressure water jets from any direction)
  • Approvals- C UR US, CCC, GL

Compatible Inserts

Series Part Number
CDD CDDF-38
CDDM-38
CDA CDAF-16, CDAF-16X
CDAM-16, CDAM-16X
CDC CDCF-16
CDCM-16
