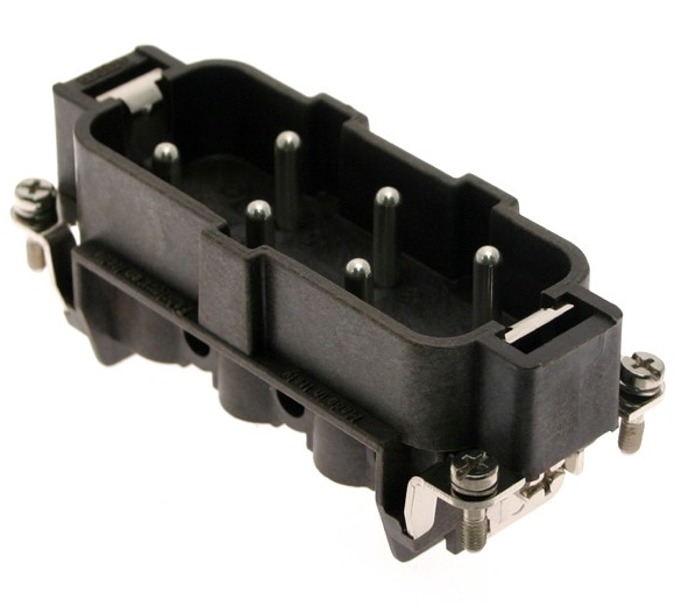

The ILME CPM-06RY CP series high temp male insert fits size 77.27 enclosures and is 6 pin + ground with a voltage rating of 600V and a rated current of 35A. The reinforced thermoplastic housing is self-extinguishing and is rated UL 94 V0. Rated IP 20. Termination: screw. The CPM-06RY is made with high temperature applications in mind, which standard inserts could not withstand.
Specifications
- Housing- Reinforced Thermoplastic
- Contacts- Silver Plated
- Gender- Male
- Pin Count- 6 + Ground
- Rated Current- 35 Amps
- Rated Voltage- 600 V
- ILME Series- CP
- Insert Type- High Temp
- Operating Temperature- -40 C to 180 C (-40 F to 356 F)
- Insert Dimension- 77.27
- Double Insert- 77.62
- Enclosure Dimension- 77.27
- Termination- Screw
- Upper AWG- 10
- Lower AWG- 16
- Insulation Resistance- >= 10 GOhm
- Mechanical Life- >= 500 Cycles
- Contact Resistance- <= 0.5 mOhm
- Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
- Approvals- UL, CSA, CCC, GOST
