ILME CKF-04 CK Series Insert, Female, Size 21.21, 4 Pin, 10A, Gray

ILME CKF-04
ILME CK Series Insert, Female, Size 21.21, 4 Pin, 10A, Gray - CKF-04



Alternative Views:


Our Price: $5.21
MFG P/N: CKF-04
MFG: ILME
Weight (lbs): 0.04

Quantity in Stock :2266


Availability:
In Stock
Product Code: CKF-04
Qty:


Description


The ILME CKF-04 CK series standard female insert fits size 21.21 enclosures and is 4 pin + ground with a voltage rating of 600V and a rated current of 10A. The housing is glass reinforced thermoplastic with silver plated contacts. The thermoplastic housing is self-extinguishing and rated UL 94 V1. Rated IP 20. Termination: screw. The CKF-04 is perfect for applications when a fast, easy disconnect is needed. It can be mated with the CKS series inserts if necessary.

Specifications

  • Housing- Glass Reinforced Thermoplastic
  • Contacts- Silver Plated
  • Gender- Female
  • Pin Count- 4 + Ground
  • Rated Current- 10 Amps
  • Rated Voltage- 600 V
  • ILME Series- CK
  • Housing Type- Standard
  • Operating Temperature- -40 C to 100 C (-40 F to 212 F)
  • Insert Dimension- 21.21
  • Enclosure Dimension- 21.21
  • Termination- Screw
  • Upper AWG- 14
  • Lower AWG- 18
  • Insulation Resistance- >= 10GOhm
  • Mechanical Life- >= 500 Cycles
  • Contact Resistance- <= 1mOhm
  • Ingress Protection- IP 20 (Protection from objects 12.5mm (0.5") in diameter or larger)
  • Approvals- UL, CSA, CCC, GL, GOST

Compatible Enclosures

Series Part Number
CK-INSULATING CK-03I, CK-03IN
CK-03IA, CK-03IAN
CK-03IAPN, CK-03IAP
CK, MK-INSULATING CK-03V, CK-03VN, MK-VN20, MK-VGN20
CK-03VA, CK-03VAN, CK-03VGN
CK-03CXA, CK-03CXAN, MK-V20, MK-VA20
CK-03CA, MK-VG20, CK-03VG
CK-METALLIC CKAX-03I, CKA-03I
CKA-03IA, CKA-03IAPS
CKAX-03IA,
CKA-03APS, CKAX-03IAPS
CK, MK-METALLIC CKA-03VS, CKA-03VAS, MKA-V20
CKA-03VGS, CKAX-03VGS, MKA-VA20
CKAX-03CX
CKAX-03CXA, MKAX-AP20
MKAX-IAF25, MKAX-IF
CK-AGGRESSIVE ENVIRONMENTS CKAXW-03IAP, CKAW-03V
CK- EMC CKAXS-03I, CKAXS-03IAP, MKAXS-VG20

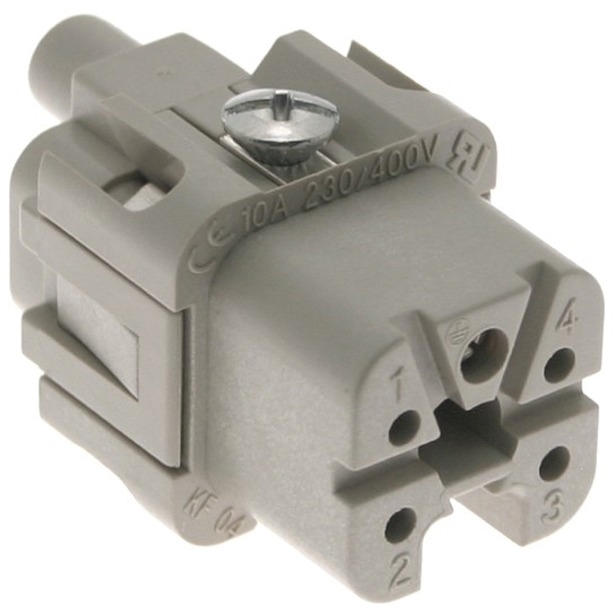

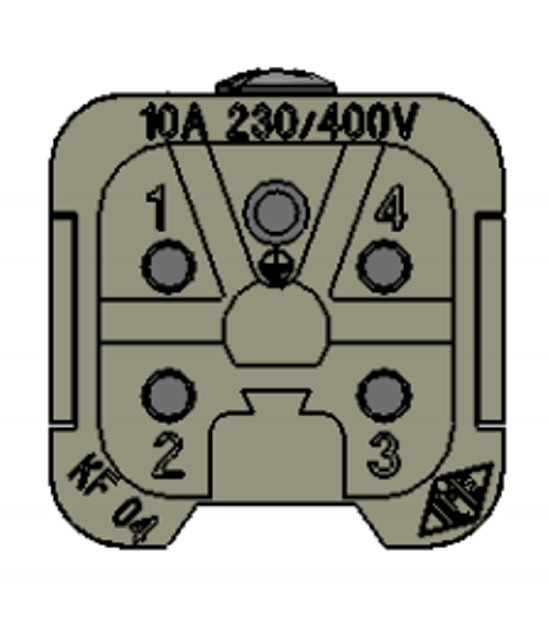

ILME 21.21 4 Pin Female Insert CKF-04
