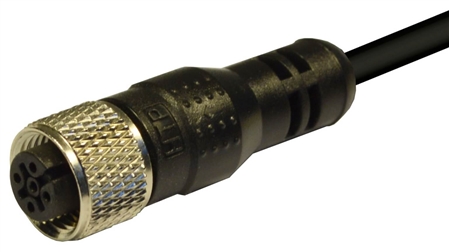

The HTP 12FD4B5Z M12 Molded Cable features a 4-pin female straight connector with a 5-meter cable length. This M12 cable supports up to 250V rated voltage and 4A rated current, delivering reliable transmission.
Engineered with 22 AWG (0.34mm²) conductors, the cable ensures strong performance and durability. It also offers IP69K protection, making it suitable for high-pressure, high-temperature washdowns in harsh environments.
Pin 1 - Brown
Pin 2 - White
Pin 3 - Blue
Pin 4 - Black
Specifications
- Housing & Cable Color: Black
- Type of Contact: Female Straight
- Number of Pins: 4
- Rated Voltage: 250V AC/DC
- Rated Current: 4 Amps
- Protection Class: IP 69K
- Cable Material: PVC
- Contact Material: Phosphorous Bronze
- Contact Surface Material: Gold Plated Brass
- Housing Material: Glass Fiber Reinforced Nylon 6
- Coupling Nut Material: Nickel Plated Brass
- Conductor Insulation Material: PVC
- Temperature Range: -25 C to 70 C (-13 F to 158 F)
- Cable Length: 5 meters (16.4 ft)
- Outer Diameter: 5.2mm
- Wire Gauge: 22 AWG
|
|
|
 |
|
 |
